Fiber trunks and breakout legs are ambiguous

Examples are fictional local conventions. Unless another location is shown, the scope is DC01 / H1. Keep that scope with shortened identifiers.

How should a missing or unused fiber reference be recorded?#

A blank cell cannot tell a reviewer whether a fiber is unused, unverified, missing, or outside the work package. Retain the expected assembly position and give its state an explicit meaning. Apply the same rule to legs, cassette positions, or individual fibers at the level the project's record model uses.

Keep three questions distinct: Is the required population accounted for? Do the identities and destinations agree? Has the applicable technical evidence been accepted? A row can answer the first two while a polarity review remains pending. Use wording such as “mapping confirmed; technical review pending” instead of a broad pass.

The label scheme must follow the actual assembly documentation and controlling revision. Corning's EDGE procedure provides product-specific hierarchy context; it does not make this editorial status table a universal polarity method. Corning EDGE procedure.

Before closing the register, account for every expected position within the agreed scope. Preserve legitimate blanks as defined states and investigate omissions; do not delete unresolved entries to make the table appear complete.

When to use#

Use this guide for ambiguous trunk tails, fibers, or module destinations. Work from assembly records and permitted observations; this is documentation, not an optical test or connection procedure.

Corning's EDGE procedure S46998-A0007-P146, Issue 1, illustrates chassis, tray, module, and port identification and documentation of individual fiber strands in its recordkeeping sections. Its hierarchy is equipment-specific. Corning EDGE procedure

What to gather#

Collect the trunk identifier, exact assembly part and revision, manufacturer mapping document, chassis and module records, endpoint schedule, and any separate polarity-test evidence.

Method#

1. Match the trunk to its assembly record before naming its branches. Record the part or assembly revision so a similar connector arrangement cannot substitute for the intended map.
2. List the manufacturer's leg or fiber references exactly. Keep the distinction between a physical tail, an individual fiber, and a port; do not collapse them into one ambiguous number.
3. Record each termination's hierarchy, including the chassis, tray, and module where relevant. Use one row per mapped leg or fiber reference.
4. Compare the mapped rows with the controlled connection schedule. Record missing, repeated, spare, and unused references explicitly instead of assuming every visible position has the next number.
5. Review every populated and intentionally unused reference with a second reader. Retain unresolved map entries separately, and link polarity evidence without claiming that labels establish polarity.

Where a fiber port's identity comes from#

Copper gives a port three names at once: the number molded into the panel, the identifier the site prints on the strip, and the interface name at the far end. Patch-panel and port labels do not match sets out which of the three to anchor to and which to treat as a mapping you record. Fiber keeps all three and adds a fourth, and the fourth is the one this page turns on: the assembly.

A pre-terminated trunk arrives with the manufacturer's own assembly and leg references already on it. Those references are not decoration and they are not yours to reassign. They are the only thing tying a physical leg to the factory records for that build. Corning's EDGE procedure illustrates chassis, tray, module and port identification and the documentation of individual fiber strands as an equipment-specific hierarchy, which is exactly the point: the hierarchy belongs to the product. Replace its references with a local sequence and the route back to the assembly's own documentation is gone, along with the ability to say which fiber inside the jacket you are talking about.

So the fiber rule is the copper rule with one more party. Anchor the printed label to the assembly's references, key your record to your own identifier, and treat both the far-end interface name and the fiber position inside the connector as relationships you record rather than values you assign.

The last row is worth stating plainly because it is the most common source of an argument. A transceiver interface name changes when the equipment is reconfigured, and nobody tells the cabling record. It is a useful thing to know about a port and a poor thing to print on it.

A fiber port is an address inside three enclosures#

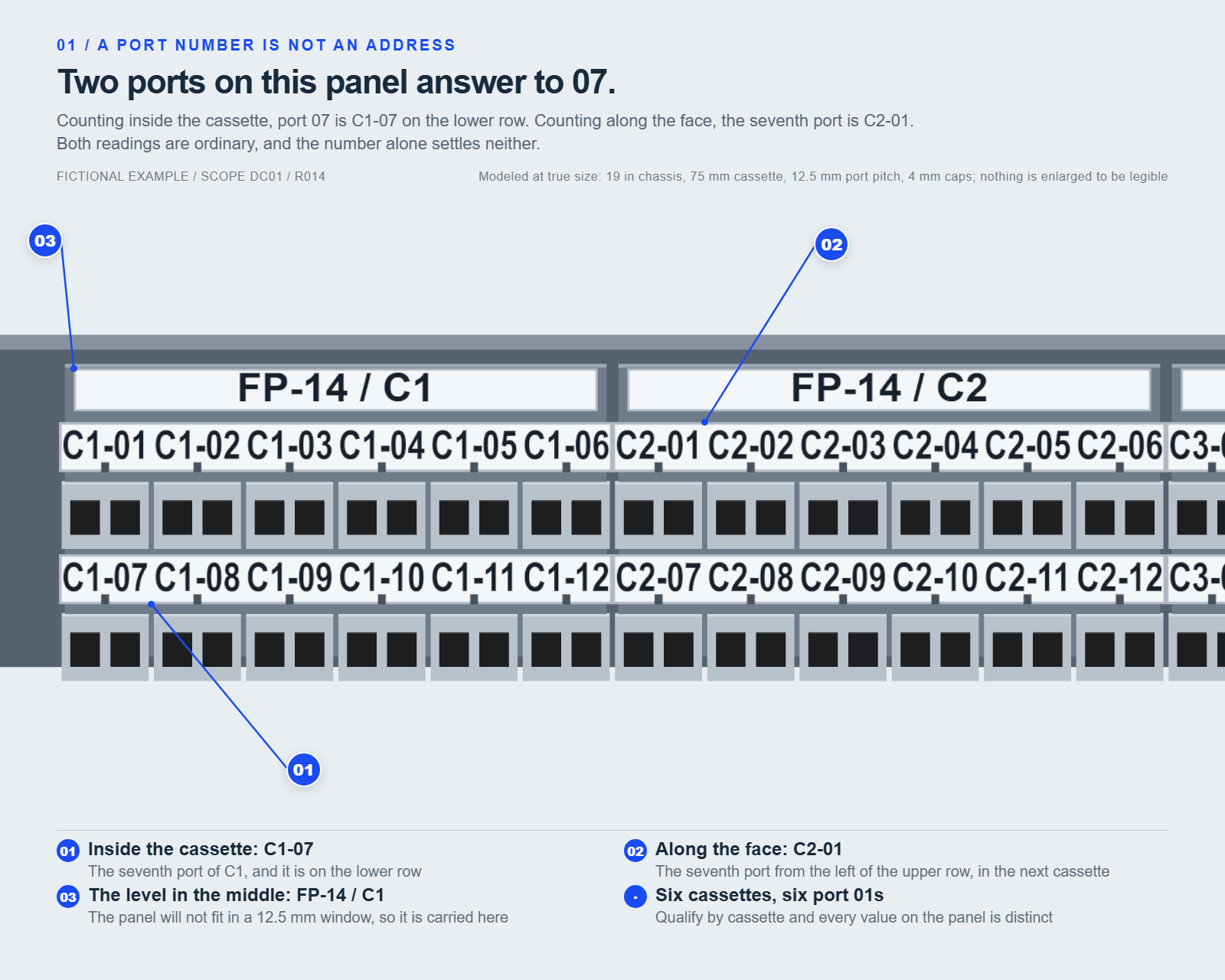

On copper, a port is a hole in a plate and its address is the panel plus a number. On fiber, the front of the panel and the back of the panel are counting different things, and neither count is the whole address.

Take the densities a current high-density panel is ordered in. Cisco's high-density fiber patch panel and MPO portfolio data sheet, dated July 9, 2026, lists a 1RU chassis that holds six cassettes and presents 72 duplex LC ports at the front against 18 MPO12 connectors at the rear, with 2RU and 4RU chassis at twice and four times those counts. Cisco high-density fiber patch panel, MPO and breakout portfolio

Read the first row as an identifier problem rather than a capacity one. Seventy-two front ports are distributed across six cassettes, so "port 07" is not an address until the cassette is named: it is the seventh of something, and the panel holds six somethings.

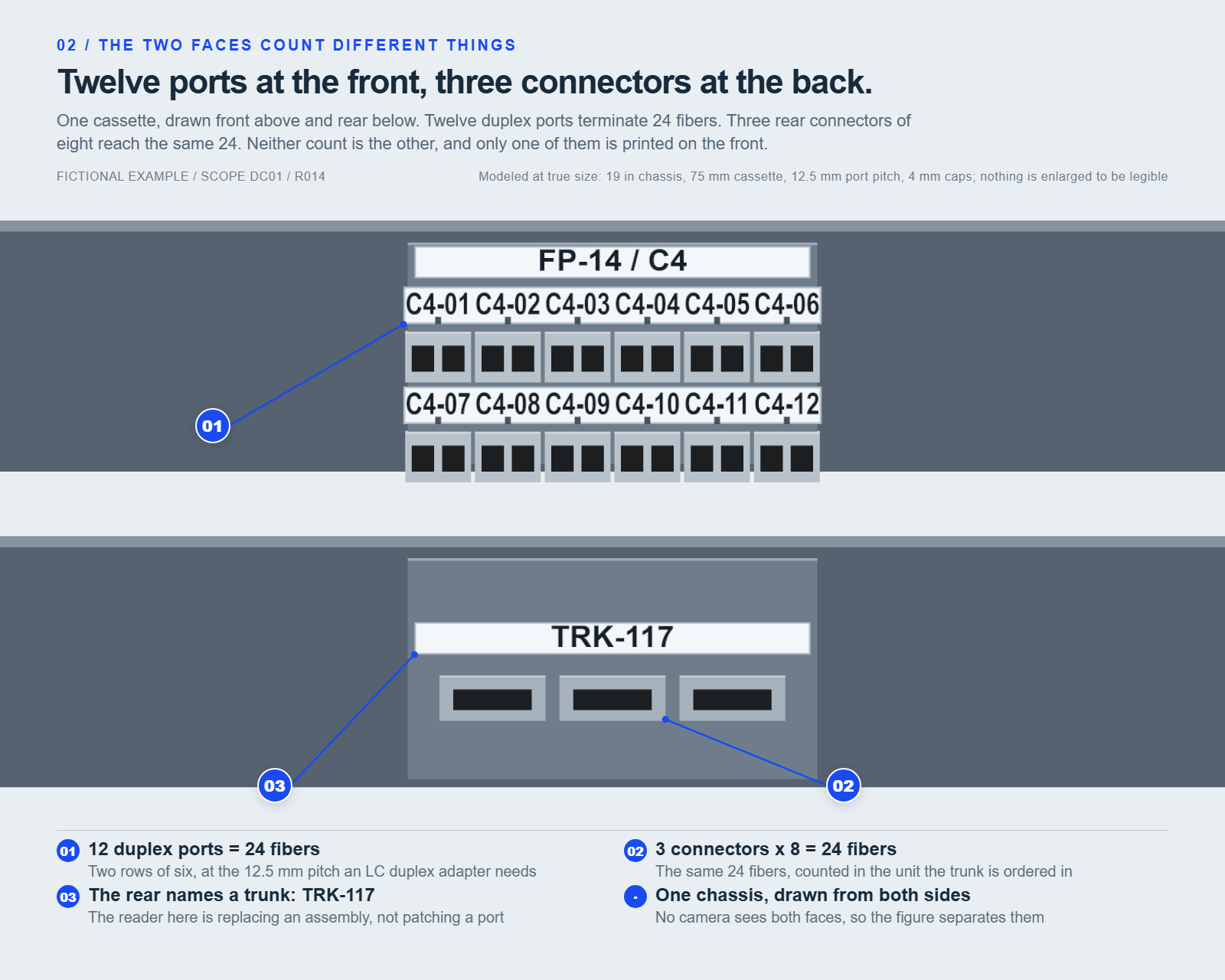

Now divide that row by its six cassettes. Each cassette presents twelve duplex LC ports against three MPO12 connectors at the rear. Twelve duplex ports terminate 24 fibers; three MPO12 ferrules hold 36 positions. The arithmetic is the whole lesson of this section: the number of connectors at the back of a cassette does not tell you how many fibers are live inside them, and the difference is not an error. The data sheet states the port and connector counts and the rack heights. It does not state which positions in each ferrule the cassette uses, nor a numbering order, nor a labeling scheme, nor which cassette position is first. Those come from the assembly document for that part and revision.

That is the same shape the copper case has, and it is worth naming: ordering information fixes the geometry and leaves the numbering to the panel in front of you. The difference is that on copper you can at least count the holes.

The practical consequence for the register is that a fiber port needs its enclosure levels spelled out, and which levels are load-bearing depends on the hardware rather than on a preference. The chassis distinguishes panels. The cassette position distinguishes one group of twelve from another. The port distinguishes within the cassette. Drop the middle level because the label is short and every panel in the row acquires six ports numbered 01.

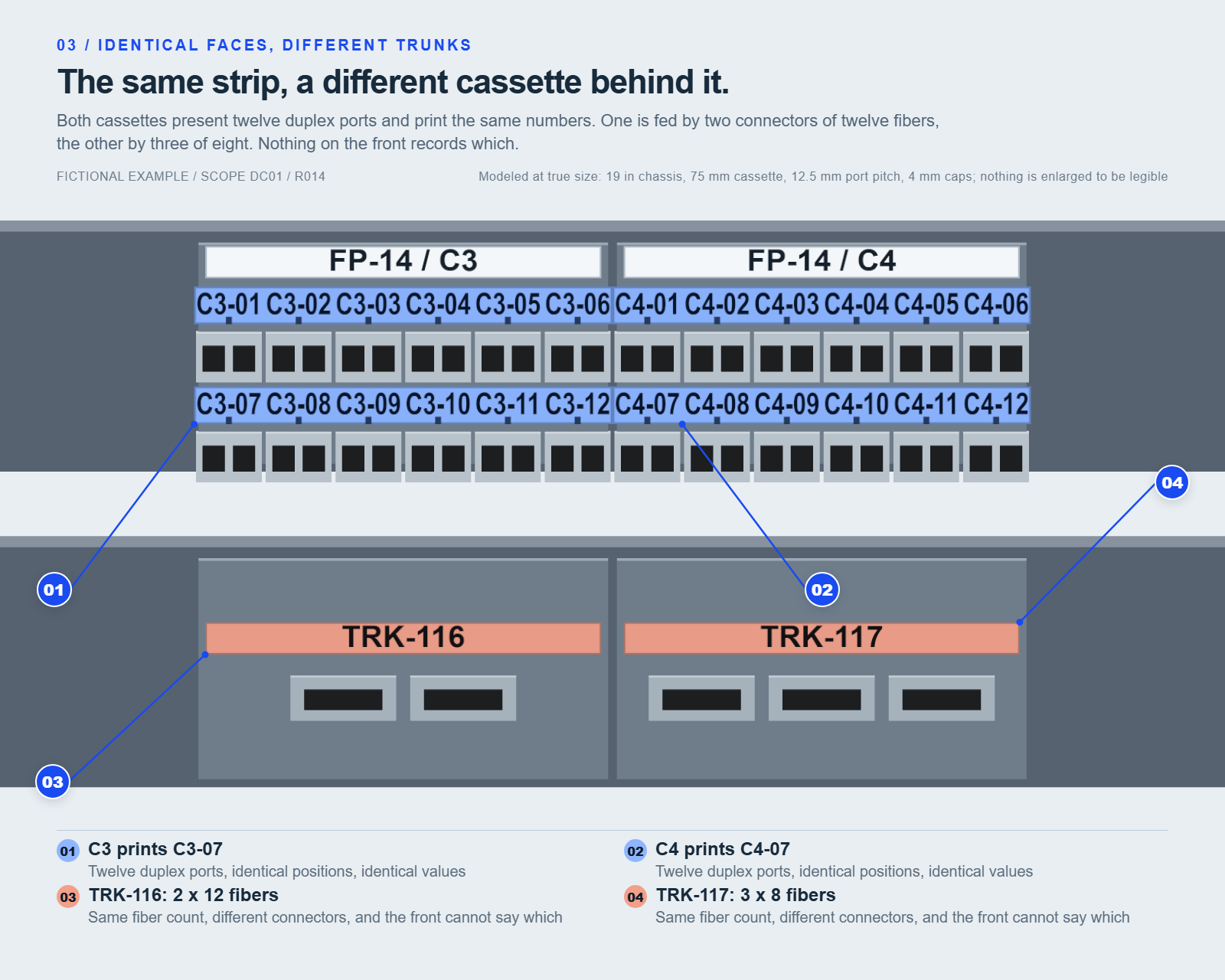

The cassette decides what is behind port 07#

This is the fiber version of the claim the copper pillar makes about numbering order, and it is less visible because the evidence is inside a sealed module.

A cassette takes array connections at the rear and presents duplex ports at the front, and what it can present depends on the fiber increment the system was built in. Siemon sets the two increments out as arithmetic on a 24-fiber trunk: base-8 is three MPO connectors of eight fibers each, base-12 is two connectors of twelve. Siemon: base-8 against base-12 Divide either connector by the two fibers a duplex port needs and the consequence for the front of the panel follows without anyone having to assert it: an eight-fiber connector can front four duplex ports, a twelve-fiber connector six. The panel face is identical either way. The port numbers printed on it are identical either way. What differs is which fiber of which trunk is behind each of them.

So two panels can be the same model, in the same row, carrying the same strip, and port 07 can be a different fiber in a different trunk on each. The strip is correct on both. The register is only correct on one, and nothing about the front of the panel will tell you which. The information lives in the cassette's ordering reference and the assembly document, which is why the middle level of the address has to be a real recorded value and not a slot you inferred from left-to-right order.

Two habits follow.

Record the cassette as an object with its own identity and its own reference, not as a property of the port. A cassette can be moved to another slot, and when it moves it takes its internal mapping with it. If the cassette's identity only exists as part of a port string, moving it silently invalidates every row that mentions it.

Record the fiber increment the assembly is built in alongside the part and revision. It is the one value that lets a later reader reconstruct why a given front port maps to a given trunk fiber, and it is the value most likely to be missing when a second batch is ordered from a different family.

Polarity is a property of the link, not of the label#

The page has always said that a complete identity map does not establish polarity. Here is why, in terms a reviewer can check.

ANSI/TIA-568.3-E, the optical fiber cabling and components standard, was issued on September 29, 2022 by the TR-42.11 optical systems subcommittee, revising the previous edition to incorporate the content of its addendum. TIA standard announcement The standard specifies performance, transmission, and test and measurement requirements for premises optical fiber cable, connectors, connecting hardware and patch cords, and it defines five polarity methods for array connectivity: A, B, C, U1 and U2. Of those five, only A, B and C support array-to-array signal polarity, while all five support duplex configurations. TIA FOTC: ANSI/TIA-568.3-E

The methods differ in where the crossover happens rather than in what gets printed. Fluke Networks describes Method A as straight-through trunks with a key-up connector at one end and key-down at the other, which pushes the flip into the patch cords and requires a different cord at each end; Method B as reversed trunks with key-up connectors at both ends, which handles the flip in the trunk itself; and Method C as trunks that flip each pair internally. Fluke Networks: fiber polarity

Now put that next to the label register. In every one of those methods the trunk is a trunk, the cassette is a cassette, and the patch cord is a patch cord. The same three kinds of object carry the same three identifiers. Two links whose registers are character-for-character identical can be built to opposite methods and one of them will not pass traffic. The same source is blunt about the field consequence: you cannot always tell which side is which by looking, which is why polarity is confirmed with a test rather than read off a face.

That gives a rule for what goes where. The polarity method belongs in the assembly record, against the part and revision, because it is a property of how that assembly was built. It does not belong on the port strip, because the strip's reader is standing at the panel and cannot act on it. And it must never be inferred from the register: "mapping confirmed, polarity evidence pending" is a complete and honest state, and it is the state most links are in when the labels go on.

Name the assembly, the leg, and the fiber as separate things#

The page's existing advice is to keep these terms distinct. This is the table that makes it checkable. Each row states what the object is and what it is unique within, which is the only thing that decides whether two rows with the same value are a duplicate or a coincidence.

Two consequences fall out of the middle column, and both are the reason exports go wrong.

A fiber position is unique only within its connector, so F01 is never an identifier. It is a value that becomes an identifier when the trunk, the leg and the connector are carried with it. An export that reduces a row to "F01 to F01" has discarded every field that made it mean anything, which is the failure the second scenario below walks through.

A port is unique within its cassette, not within its panel. If your scheme numbers ports continuously across the panel face instead, that is a legitimate choice and it must be a stated one, because it means the printed port number no longer matches the cassette's own port count and a cassette swap renumbers the ports around it.

Where a manufacturer's reference contains a letter, a hyphen or a leading zero, reproduce it exactly. It is a foreign key into someone else's document.

What the front strip carries and what the rear carries#

Copper panels have a front and a rear that name the same ports twice. Fiber panels do not: the two faces terminate different things, so they carry different content, and a scheme that prints the same strip on both is answering one reader and confusing the other.

The front reader is patching equipment. They need the port's own identity within its cassette, and enough context to find it in the register. The rear reader is tracing or replacing a trunk. They need the trunk identity and the assembly reference, because the object in their hand is a whole assembly and its legs, not a port.

The decision to make before printing anything is the same one the copper page asks for: decide what the strip carries, then measure it. A destination-bearing front strip is defensible and so is a bare one, and the reasons are set out in decide what the strip carries. What is not defensible is deciding it per panel as the installer goes.

Determine what is actually ambiguous#

Start by naming the object whose identity is uncertain: the complete trunk, a physical breakout leg, an individual fiber reference, a cassette, or a port. These objects can be related without sharing the same identifier. A report that says “fiber 1 wrong” is not specific enough to decide whether the problem is a missing parent identity, an incorrect assembly map, or an incomplete destination reference.

If the parent trunk is unknown, resolve that identity before numbering its branches. If the trunk is known but the leg reference is unreadable, preserve the observed condition and obtain the appropriate assembly evidence. If the leg reference is clear but its destination is uncertain, retain the leg identity and investigate the endpoint relationship through the approved process.

If a schedule repeats the same fiber number, compare the complete hierarchy. F01 in two different trunks or cassettes may describe two distinct references. The apparent duplicate may be missing parent context rather than duplicated physical identity. Conversely, two rows with the same complete trunk and leg key need a documented explanation.

Keep documentation uncertainty separate from optical test results. A completed mapping review establishes the reviewed identity relationships. It does not by itself establish polarity, continuity, insertion loss, or service readiness. Link the applicable separate evidence without inventing a technical result from the appearance of the labels.

Establish the parent assembly and controlling revision#

Collect the exact assembly identity, part reference, and revision information available for the installed object. Link the manufacturer or approved assembly mapping document that applies to that reference. A visually similar connector arrangement or another cable from the same project is not sufficient reason to reuse its map.

Record which document controls each relationship. An assembly document may describe leg or fiber references within the product, while the released connection schedule describes where those references are assigned in the installation. Preserve both when they answer different questions. A schedule cannot silently redefine an assembly marking just because a project uses another naming style.

If the assembly reference is unavailable or conflicting, keep the affected mappings held for the responsible owner. Record the observed markings and the missing document rather than creating a plausible sequence from physical order. The next authorized investigation should know whether it needs product identification, a revision decision, or endpoint evidence.

Check changes as part of the revision review. A replacement assembly, cassette relocation, or schedule update may invalidate a previous mapping comparison. Record the event and identify which rows need review. Do not discard the old reference before it has been linked to the superseding arrangement.

Keep trunk, leg, fiber, and port terms distinct#

Write a short glossary for the actual work package using the terms in its controlling documents. A leg is a physical branch when the assembly uses that concept. An individual fiber reference may identify a constituent within a larger connection. A port or adapter reference identifies a termination position. Avoid using the same bare number as shorthand for all three.

Use a complete row key that starts with the parent identity and adds the necessary child reference. Where a manufacturer's reference contains a letter or punctuation, preserve it exactly. Do not replace it with a local sequence that loses the ability to compare the row with the assembly documentation.

Record local aliases separately if the site needs them for work-order readability. The crosswalk should show the manufacturer's reference, the site's alias, and the destination relationship. The alias must not become the only surviving link to the actual assembly map.

When a physical leg contains more than one individually managed reference under the project model, represent the relationships at the level the records require. Do not assume that one visible connector always corresponds to one worksheet row. The controlling documentation and the work package determine the required granularity.

Capture the hierarchy on both sides#

Include the enclosure, chassis, shelf, tray, slot, cassette, module, adapter, and port levels that actually distinguish the installed endpoint. Not every installation uses every level, but omitting a necessary level can make a correct final fiber number ambiguous. Use the hardware's actual hierarchy rather than forcing it into a generic example.

Record the current location of a separately identified cassette or module without erasing that component's physical identity where it is tracked. A cassette moving from one slot to another changes a location relationship. Whether any associated assembly identity changes is a policy and equipment-model question for the responsible owner.

Keep complete site and hall scope with the review record. If the physical label uses a shortened reference, identify the controlled context through which it resolves to the full endpoint. A technician reviewing the map outside the immediate enclosure should still be able to distinguish both sides.

Check the relationship between the local parent hierarchy and the remote parent hierarchy. Matching F01 at each end is not enough if two cassettes each contain F01. The comparison must establish which trunk and which cassette or module each reference belongs to.

Account for every required reference#

Start from the complete set of references defined for the actual assembly and work package. Create an outcome for each required leg or fiber reference: mapped to a confirmed destination, intentionally unused, reserved under the plan, missing from the evidence, or unresolved. Use the site's supported status terms and explain any ambiguity.

Do not infer an unused state from an empty spreadsheet row. An empty row may mean the preparer forgot the reference. Similarly, a visible unconnected position is not enough to establish a future reservation. Record the released plan or owner decision that defines the intended state.

Compare the register with the assembly map and connection schedule in both directions. Every expected reference should appear in the register, and every register row should have an applicable parent and source. This catches both omissions and extra rows copied from another assembly.

Record repeated references with their complete keys before deciding they are errors. If the complete key repeats without a supported reason, hold the conflicting rows and ask the map owner to resolve them. Do not delete one to make the count agree.

Build a readable diagram from the verified register#

Use the diagram to explain the relationships already supported by the records. Show the parent trunk, each relevant branch reference, and the complete or clearly scoped destination. Keep labels near the lines they describe and distinguish assembly references from physical endpoint identities.

A diagram should state its scope and controlling map revision. If it simplifies the assembly by showing only selected legs, say which subset it represents and keep the complete register available. The two-leg examples in this library illustrate how to communicate relationships; they do not describe a universal breakout configuration.

When fiber numbers repeat, use separate branches or grouped hierarchy labels rather than visually merging them into one line. A viewer should be able to trace a selected row from the parent through the child reference to its intended destination without guessing which crossing line it follows.

Review the diagram against the register after each mapping change. A corrected spreadsheet and an unchanged reference diagram create competing instructions. Give the diagram an owner and revision so it remains connected to the same release as the label proofs.

Compare identity mapping with separate technical evidence#

The label register and any polarity or performance evidence should use compatible identifying references so the reviewer can establish what was tested or reviewed. Link the evidence to the relevant trunk, leg, fiber, or connection under the project model. Do not attach a test result only because its filename resembles the cable ID.

Record what the linked evidence actually covers. A result may apply to a specific assembly revision, path, or event. The responsible technical owner determines its applicability and acceptance under the project requirements. This guide's documentation reviewer should preserve that scope rather than expand it.

If identity mapping is resolved but the required technical review is pending, state both facts. “Map agrees with released schedule; separate polarity review pending” is more informative than a single broad “passed.” If the test record cannot be associated with the mapped object, retain that as a records discrepancy for the relevant owner.

Avoid deriving a mapping from color alone or presenting a diagram as a polarity test. Use the exact product documentation and approved verification process for technical conclusions. The worksheet's role is to retain the relationship and its evidence clearly enough for those conclusions to be attributed to the right object.

Scenario: a reused diagram points a leg to the wrong switch#

In a separate fictional case, trunk TRK-G08-301 in DC01 / H1 is governed by assembly record ASM-G08-301 revision 2. The local hierarchy is DC01/H1/R301/PNL-G08-301/SlotA/Adapter01. A copied drawing sends leg L2 to DC01/H1/R302/SW-G08-301/P02, but the released connection schedule assigns that leg to DC01/H1/R303/SW-G08-302/P12.

The reviewer preserves both claims under MAP-G08-301 and checks the applicable assembly reference and approved endpoint evidence. The investigation establishes that the drawing was copied from another work package. The manufacturer's leg reference remains L2; the installation destination is the field requiring correction.

The mapping owner updates the L2 row and the reference diagram, retaining the rejected destination in the discrepancy history. The label preparer generates the corrected leg face from the released row. Other required assembly references are compared independently so the successful L2 correction does not stand in for a whole-assembly review.

Closure includes the assembly revision, complete local and remote hierarchy, corrected diagram and proof references, and the independent mapping check. Any required polarity or performance evidence remains separately identified by its own owner and scope. The map correction is not described as proof of optical operation.

Scenario: two cassette references look identical in an export#

In another fictional case, TRK-G08-302 and TRK-G08-303 are separate parent assemblies in DC01 / H1. Their local cassettes each contain reference F01, and an export reduces both rows to “F01 to F01.” The receiving team cannot tell which remote cassette belongs to either row.

The reviewer restores the parent trunk and cassette hierarchy from the controlled records. One row belongs to DC01/H1/R304/PNL-G08-302/SlotA/F01; the other belongs to DC01/H1/R304/PNL-G08-302/SlotB/F01. Their remote references are retained with equally complete hierarchy. The diagnosis is a lossy export, not a reason to renumber factory fiber references.

The export owner corrects the field selection, and the mapping owner checks the restored rows against the actual assembly records. The diagram and label proofs preserve the distinguishing parent context. A second reader is asked to select each F01 relationship independently from the released export. Closure records the repaired output and the evidence supporting both rows.

Handle brownfield uncertainty and new-build preparation#

In an established installation, preserve observed markings and the last known map before proposing corrections. Identify whether the discrepancy arose from a replaced assembly, a moved cassette, an undocumented endpoint change, or incomplete records. Keep an unsupported candidate mapping visible as a candidate rather than printing it as fact.

Where access is limited, record exactly which parent and child references can be observed under the approved process. Assign missing evidence to the owner who can obtain it. Do not disturb adjacent operational fiber merely to complete the documentation review described here.

For a new build, align the assembly map, connection schedule, diagram, and print source before bulk preparation. Include unused or reserved references explicitly so the receiving team can distinguish intended omissions from missing work. Account for changes between staging and installed review.

When several assembly variants share a project, keep their part and revision references attached to their own maps. A batch-level statement that “all trunks are the same” should not replace the specific evidence needed to identify each installed assembly.

Close a complete and interpretable mapping record#

The final reviewer should be able to start with a physical parent or child reference and find its complete row, governing assembly map, destination evidence, and current disposition. They should also be able to start with an expected assembly reference and see whether it is mapped, intentionally unused, reserved, or unresolved.

Check that the diagram, print proofs, and editable register represent the same release. Preserve rejected mappings and superseded revisions as history while keeping the active view unambiguous. Record who owns later cassette, endpoint, or assembly changes.

Separate documentation closure from any technical acceptance that belongs to another process. Keep pending evidence visible with its owner. A complete-looking map becomes useful when its scope, omissions, and unresolved relationships are explicit enough for the next team to act on them correctly.

Worked example#

Fictional assembly DEMO-ASM-010 rev 1 defines these two leg references.

TRUNK F-010
 +-- LEG L1: DC01/H1/R014/CH01/T02/M-A/P01 -> DC01/H1/R021/PP02/19
 +-- LEG L2: DC01/H1/R014/CH01/T02/M-A/P02 -> DC01/H1/R021/PP02/20
Assembly map: DEMO-ASM-010 rev 1
Mapping review: example only
Polarity: not assessed by this identification example

This fictional map supplies the association; connector appearance, fiber color, and leg order do not establish it.

Common mistakes#

• Copying the map for a similar assembly revision.
• Using one number interchangeably for a tail, fiber, and port.
• Treating a complete label schedule as proof of optical polarity.

Verification#

• The assembly identifier and revision match.
• Leg and fiber terms have explicit meanings.
• Every required reference has one mapped row.
• Unused or unresolved references remain visible.
• Mapping review and polarity evidence are recorded separately.

Worksheet: Fiber trunk and breakout mapping sheet#

Fields define one row; sample values are fictional. Leave working-sheet dates blank until their recorded event occurs. Sample status: Example only.

Frequently asked questions#

Can the jacket or connector color identify the correct leg?#

Record any relevant manufacturer markings, but derive the association from the exact assembly documentation and verified endpoint references.

How should spare fibers appear?#

Retain their actual reference and mark the documented condition, such as unused or reserved. Do not delete them merely to make the worksheet shorter.

Is there a universal fiber numbering diagram we can copy?#

Use the exact assembly and installation documents governing the hardware. A generic diagram can help explain the structure of a record, but it cannot establish the installed leg, fiber, or cassette mapping. Replace every illustrative relationship with supported project references.

Should unused legs disappear from the label register?#

Keep required assembly references visible with their documented disposition. An explicit unused or reserved state distinguishes a planned condition from an omitted row. Use the site's actual status definitions and link the relevant plan or owner decision.

Can we close identity mapping while a polarity record is pending?#

Record the completed mapping review and the pending technical evidence separately. The project owner decides the overall acceptance state. Do not convert a successful identity comparison into a claim that polarity or performance has been verified.

What is the difference between MPO and MTP?#

MTP is a brand of MPO connector, not a different connector type. US Conec describes the MTP connector as a high-performance MPO with engineered enhancements including removable housings, ferrule float and an improved guide pin design, and states that it complies with MPO standards and is intermateable with standard MPO connectors. US Conec FAQ For a label register the practical consequence is small and worth writing down anyway: record whichever term the assembly document uses, do not treat MPO and MTP rows as describing different hardware families, and do not print a brand on a strip where the generic term will do.

How many duplex ports does one MPO connector become?#

It depends on the fiber increment the cassette is built in, which is why the answer has to come from the assembly document rather than from the connector. Siemon states the increments as fiber counts: base-8 puts eight fibers in a connector, base-12 puts twelve, so a 24-fiber trunk is three connectors in one system and two in the other. Siemon: base-8 against base-12 A duplex port needs two fibers, so eight fibers can front four duplex ports and twelve can front six. The connector housing looks the same in both cases. Cisco's high-density panel makes the same point at chassis scale: a 1RU presenting 72 duplex LC ports carries 18 MPO12 connectors behind them, which is three MPO12 ferrules and twelve duplex ports per cassette, so the ferrule positions and the front ports are not in a one-to-one relationship. Cisco high-density fiber patch panel, MPO and breakout portfolio

Which polarity method should the label show?#

None of them. The polarity method is a property of how the assembly was built, so it belongs in the assembly record against the part and revision, where the person choosing a replacement will look for it. The reader of a port strip is standing at a panel with a patch cord and cannot act on it. Printing it there also invites the mistake this guide exists to prevent, which is treating a printed value as evidence: the same three kinds of object carry the same three identifiers under Method A, B or C, so a label that names a method is asserting something the label cannot demonstrate.

Is a fiber patch panel labeled the same way as a copper patch panel?#

The identity rules carry over and the geometry does not. Both need the panel's own numbering order read off the installed hardware rather than off a template, and both need a decision about whether the strip carries the port's own identity or its destination; patch-panel port mapping covers both. The difference is that a copper port is a hole in a plate and a fiber port is a position on a cassette that is itself a position in a chassis, so the fiber address has a level in the middle that the copper address does not. A scheme copied straight across will produce panels carrying six ports numbered 01.

Should a cassette have its own identifier?#

Yes, if cassettes in your estate are ever moved, replaced, or ordered in more than one fiber increment. A cassette carries an internal mapping between rear positions and front ports, and that mapping travels with the module rather than with the slot. If the cassette's identity exists only as a substring of a port identifier, then moving it to another slot silently invalidates every row that mentions it and leaves no way to state what happened. Record the cassette as an object with a part reference and a fiber increment, and record its current slot as a relationship.

What does base-8 or base-12 mean for the port register?#

It is the fiber increment the assembly and cassette are built in, and it decides which trunk fiber sits behind a given front port. Two panels of the same model, in the same row, carrying identical strips, can map port 07 to a different fiber of a different trunk if their cassettes were ordered in different increments. Nothing on the front of the panel records this, so the increment belongs in the register beside the part and revision. It is also the value most often missing when a second batch is ordered later from a different product family.

Is TIA-568.3-D still the current optical fiber components standard?#

No. ANSI/TIA-568.3-E was issued on September 29, 2022 by the TR-42.11 optical systems subcommittee and revises the previous edition, incorporating the content of its addendum. TIA standard announcement A specification that still cites 568.3-D is citing a superseded edition, which matters here because the E edition is the one that defines five array polarity methods rather than three: A, B, C, U1 and U2, of which only A, B and C support array-to-array signal polarity. TIA FOTC: ANSI/TIA-568.3-E Check the edition your project adopted; an adopted edition is a contractual matter and does not change because a newer one exists.

How should the rear of a fiber panel be labeled?#

With trunk identities, not port identities. The person at the back of a fiber panel is tracing or replacing a whole assembly, so what they need is the trunk identifier, the assembly part and revision, and the panel at the far end. Individual fiber positions are the wrong granularity for that reader and will not fit the available surface in any case. This is a genuine difference from copper, where the rear of a panel terminates the same ports the front does and can reasonably repeat them.

More worked label examples

Two additional ways to apply this guide. Keep the exact identifiers and relationships consistent with your own approved records.

SCOPE: DC01 / H1; assembly map ASM-G08-101 r2
TRUNK FACE: [TRK-G08-101 | ASM-G08-101 r2]
LOCAL: PNL-G08-101 / SLOT A / ADAPTER 01
                         |
                     TRK-G08-101
                         +-- LEG L1 --> SW-G08-101 / P01
                         +-- LEG L2 --> SW-G08-101 / P02

LEG LABEL FACES
+---------------------------+  +---------------------------+
| TRK-G08-101 / L1          |  | TRK-G08-101 / L2          |
| TO SW-G08-101 / P01       |  | TO SW-G08-101 / P02       |
+---------------------------+  +---------------------------+
Map check: L1 <-> P01; L2 <-> P02
Polarity evidence: separate test/reference POL-G08-101

SCOPE: DC01 / H1; hierarchy check MAP-G08-201
TRUNK TRK-G08-201 -> PNL-G08-201 / SLOT A
TRUNK TRK-G08-202 -> PNL-G08-201 / SLOT B

LOCAL LABEL FACES
[TRK-G08-201 / SLOT A / F01]
[TRK-G08-202 / SLOT B / F01]

MAPPING PAIRS
TRK-G08-201 / F01 <-> PNL-G08-202 / SLOT C / F01
TRK-G08-202 / F01 <-> PNL-G08-202 / SLOT D / F01

Before schedule: F01 -> F01           ambiguous
After schedule: full hierarchy above distinct
Assembly refs: ASM-G08-201 r1; ASM-G08-202 r1
Identity evidence: EV-G08-201; polarity: separate review

Sources and applicability

• Corning: EDGE procedure ↗

  February 2022 equipment-specific hierarchy examples; label mapping does not establish polarity. The expanded triage, decision comparisons, scenarios, and closeout procedures are original editorial guidance.

  Read scope and linked guides
• TIA FOTC: ANSI/TIA-568.3-E scope ↗

  Public scope overview of ANSI/TIA-568.3-E: five array polarity methods, of which only A, B and C carry array-to-array signal polarity. Scope overview, not clause text.

  Read scope and linked guides
• TIA: ANSI/TIA-568.3-E standard announcement ↗

  Publisher announcement establishing the September 29, 2022 issue date of ANSI/TIA-568.3-E and the subcommittee responsible. Establishes the edition, not the edition a project has adopted.

  Read scope and linked guides
• Cisco: high-density fiber patch panel, MPO and breakout portfolio ↗

  Manufacturer ordering information dated July 9, 2026: chassis heights, cassette count, and front LC against rear MPO counts for one high-density panel family. It establishes no numbering order and does not state which ferrule positions a cassette uses.

  Read scope and linked guides
• Fluke Networks: fiber polarity methods ↗

  Test-equipment publisher describing what separates Methods A, B and C in the field, and stating that the side of a link cannot be told by looking. Practice rather than standard text.

  Read scope and linked guides
• US Conec: MTP and MPO connector FAQ ↗

  Manufacturer FAQ establishing that MTP is a high-performance brand of MPO connector, intermateable with standard MPO. It establishes nothing about fiber position numbering.

  Read scope and linked guides
• Siemon: base-8 against base-12 fiber cabling ↗

  Manufacturer comparison dated October 8, 2024 establishing the fiber count that defines each increment: eight fibers per connector against twelve, so a 24-fiber trunk is three connectors or two. It states no duplex port count per cassette.

  Read scope and linked guides

Planning guides and companion documents

• Create a cable-color legend people can use
• Fiber assembly and mapping reference record
• Panel and switch port relationship schedule
• Cable-color meaning and transition planning register

Related guides
