Patch-panel and port labels do not match

Examples are fictional local conventions. Unless another location is shown, the scope is DC01 / H1. Keep that scope with shortened identifiers.

What does the strip's error pattern tell you?#

Use the identifier builder to preview your chosen segments and export a fictional trial range before producing the approved identifiers.

First compare the port identity with the approved map. Then inspect the physical position of its text. A correctly centered wrong number is still a mapping defect; a correct number between two ports is a layout defect.

Port pitch is the distance between corresponding reference points on adjacent ports, commonly center to center. Record the actual datum and units. Keep repeated pitch separate from the gap or clearance between groups, and check how the chosen printing workflow defines each input. Brother's Patch Panel mode is one model-specific example of block length and block count controls. Obtain the panel dimensions independently.

These are investigation branches, not guaranteed diagnoses. Keep the rejected proof and change one relevant input at a time when practical. If the identity map itself is unresolved, pause layout iterations and settle the mapping. Accept the complete affected strip against its recorded model, template and print setup.

When to use#

Use this guide for drifting label strips, incorrect group boundaries, or conflicts with factory port numbers. Readable text must also identify the intended physical port.

Brother's Patch Panel mode provides block length, block count, separators, orientation and reverse order, with an advanced option for independent block lengths. These controls describe the listed printer models. Map the measured panel layout to the controls of your actual printing workflow.

What to gather#

Collect the exact panel model, factory port markings, approved panel ID, connection map, label area dimensions, chosen media, and a full-size proof.

Method#

1. Confirm the panel identity and model. Copy factory port references as printed, including letters, punctuation, and any numbering that changes between modules.
2. Draw the physical grouping before entering a print template. Mark the first port, last port, and each boundary so the numbering direction is explicit.
3. Record the measured or documented template dimensions with units. Distinguish center spacing from extra group clearance using the label application's definitions.
4. Print a full-size proof and compare it at the designated label area without obscuring factory markings or controls. Check boundaries as well as the strip's ends.
5. Have another reader match selected factory ports to the proof and connection map. Correct the template or mapping discrepancy, then retain the accepted proof reference with the panel record.

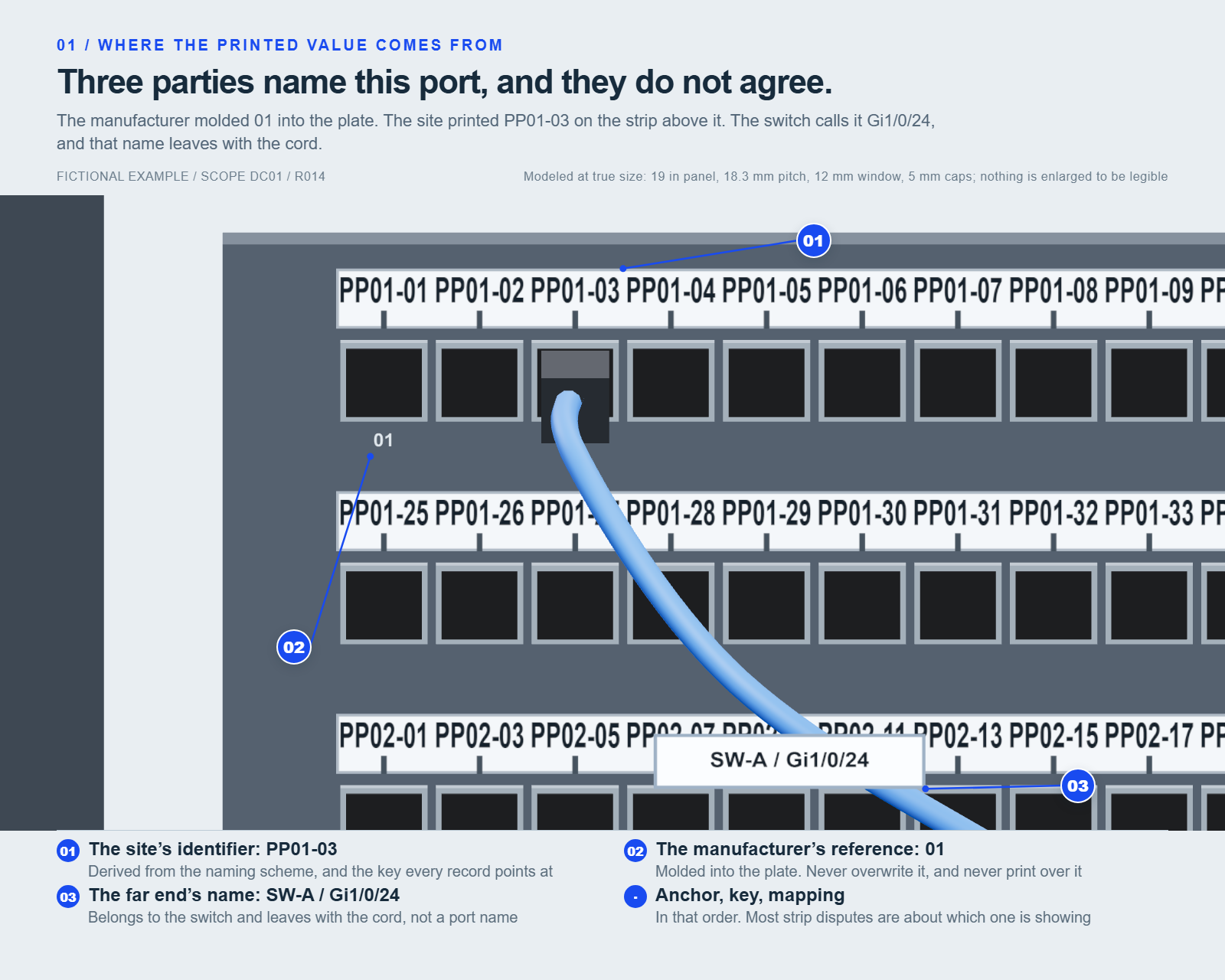

Where a port's identity comes from#

Three different things can name the same port, they are assigned by three different parties, and they do not agree. Most disputes about a patch-panel strip are really a disagreement about which of them the strip is showing.

The manufacturer's reference is the one a technician can always read off the hardware, so it is the anchor. The administration identifier is the one a record can search, so it is the key. The interface name belongs to the connected equipment and is a mapping, not an identity.

A strip that shows only the manufacturer's reference needs the panel identified somewhere else in view. A strip that shows only the administration identifier has to be reprinted whenever the scheme changes and cannot be checked against the hardware without a record in hand. Deciding which of those costs to accept is the design decision this guide is about, and it comes before any measurement.

Never overwrite the manufacturer's reference to make it agree with a record. The reference is the only evidence that survives when the record is wrong, and once it is covered the error is no longer detectable at the panel.

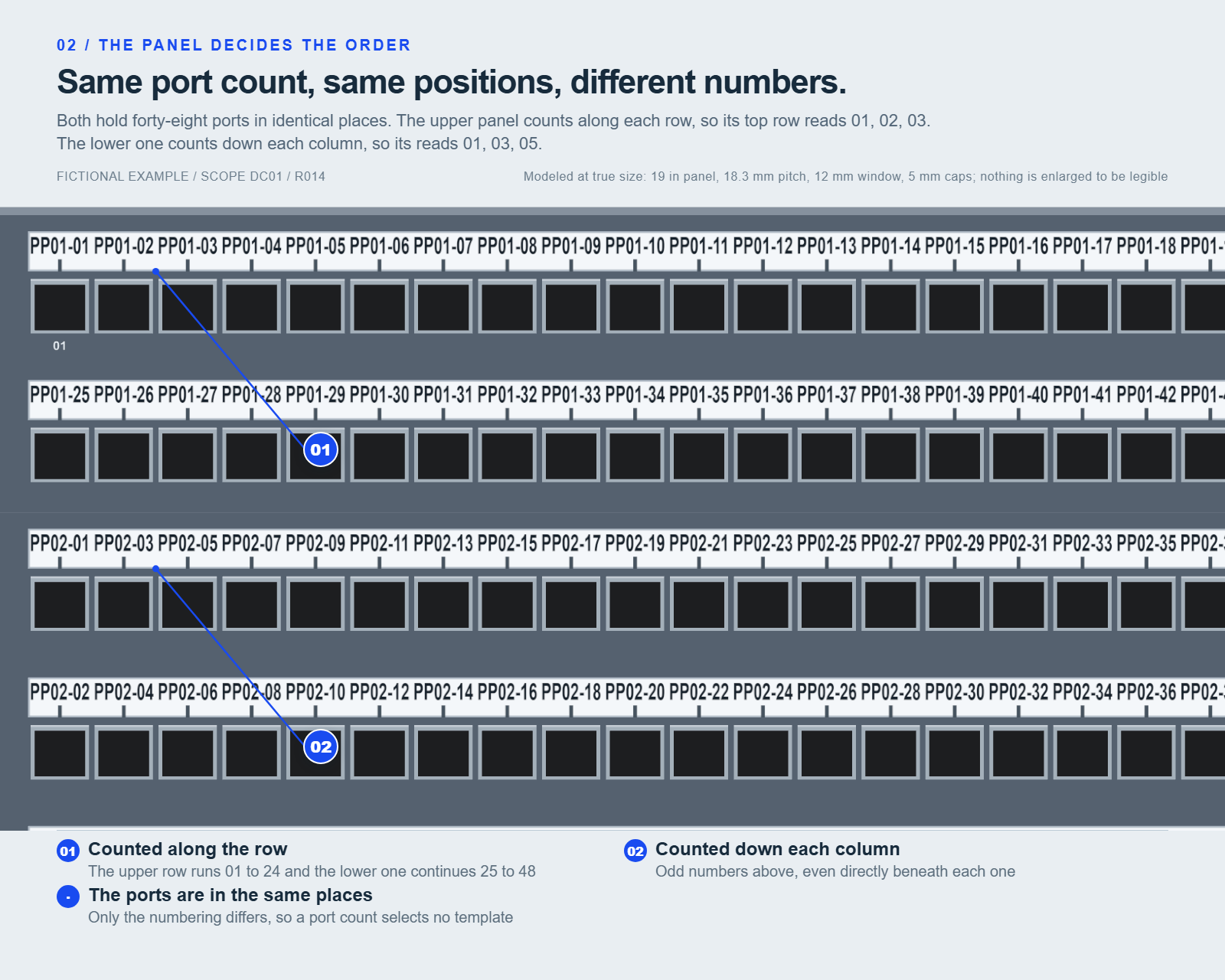

The panel decides the numbering order, and panels disagree#

A request for a twenty-four-port template names neither a geometry nor an order. Two specifications published by universities show how far apart two panels can sit while both being ordinary structured cabling.

Dartmouth College's identification section, dated March 22 2021, carries both. For Cat6A installations on the CommScope M2000 modular panel it prints the jack numbers in vertical pairs, odd on the upper row and even directly below, so the strip reads 01, 03, 05 across the top with 02, 04, 06 underneath. For Cat6 installations it records that the Siemon MX-PNL-48 2U panel is, in its words, "pre-identified in 2 rows of 24 jacks each: 1-24 and 25-48", and that those panels do not need to be relabeled apart from the panel designator on the left-hand side. Dartmouth College: Identification for communications systems

Both panels hold forty-eight ports. One counts down each column, the other counts along each row. A strip generated for either one and applied to the other puts every number on the wrong jack while looking perfectly well made.

The physical side varies just as much. Siemon's MAX patch panel ordering information lists sixteen, twenty-four, forty-eight and seventy-two port flat panels and twenty-four and forty-eight port angled panels, with the forty-eight and seventy-two port versions both occupying two rack-mount spaces. Its label accessories are listed by panel family rather than by port count: one sheet is described for the sixteen-port panel and a different sheet for the twenty-four and forty-eight port panels. Siemon: MAX patch panels spec sheet

That ordering table is the clearest statement of the problem available from a manufacturer: label geometry follows the panel family, and a port count on its own does not select it. Two panels with the same port count can take different sheets, and two panels of different port counts can take the same one.

Record these four things about the installed model before a template is opened. Each of them can be established by looking at the panel or its documentation, and each of them silently breaks a strip when it is assumed instead.

Where a panel already carries usable factory numbering, the cheapest correct answer is often to leave it alone and add only the panel identifier, which is what Dartmouth's specification does for the pre-identified Siemon panels. A strip is not evidence of care if it reprints numbers that were already right.

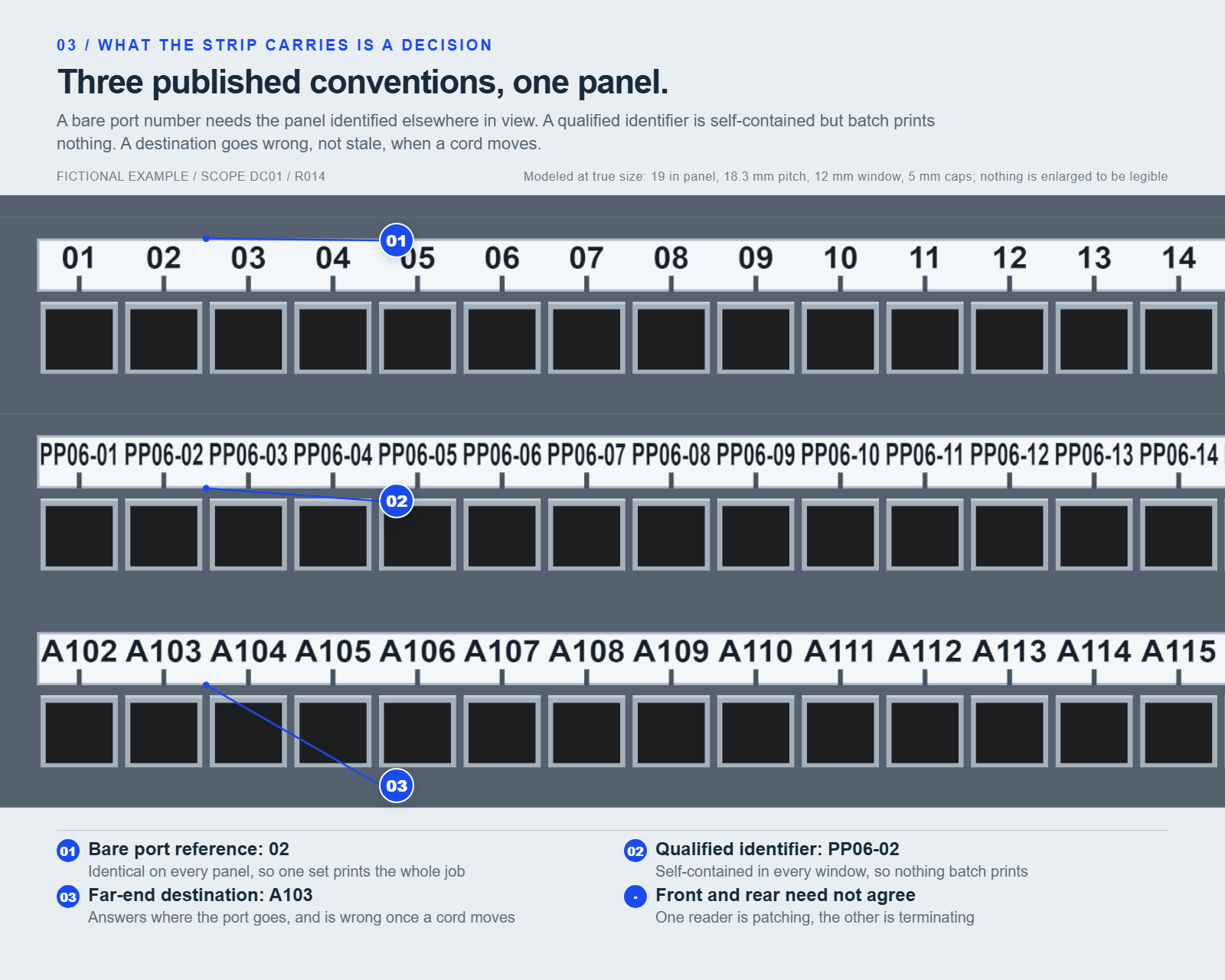

Decide what the strip carries before you measure it#

Two published specifications answer this question in opposite ways, and both are defensible. The choice changes the geometry, so it has to be made first.

The University of New Mexico's identification specification, dated October 1 2022, puts the far end on the panel. Each port is labeled with the room number, telecommunications outlet and jack position it serves, so a port reads as 114-1A1. The outlet end then carries the panel side, as data, room, rack, panel and port, giving D.114.1.1.03, and a contiguous range is written D.114.1.1.03/05. The two ends reference each other, which is what the specification calls a from/to format. University of New Mexico: Identification for communication systems

Dartmouth puts the port's own identity on the panel and allows two levels of qualification. The port number alone is acceptable when the panel designator is marked on the left-hand side of the panel, and the fully qualified form, where each window reads 1AG01, 1AG03 and so on, is equally acceptable. The specification also states why an installer might prefer the first: a strip of bare port numbers is the same on every panel, so one generic set can be batch printed for every panel being installed.

The third row is the one to think hardest about. A destination strip answers the question a technician usually has, which is where this port goes, without a lookup. It also means the strip is a record of connections rather than of hardware, so it has to be maintained on the same schedule as the connections, and a wrong value points confidently at the wrong room.

Front and rear windows have different readers and do not have to agree. The front is read while patching, standing in the cold aisle with a cord in hand, and usually needs the panel and port. The rear is read while terminating or tracing, and usually needs the far end. Decide them separately and record both decisions, because a template that fills both faces from one column will put installer information where the patcher has to read past it.

Geometry can also decide layout, and the constraint is worth stating plainly. The New Mexico specification notes that the space allocated on its patch panels for the outlet designation is limited, so it directs the room number onto the upper line and the outlet onto the lower one. That is a content decision forced by a window size, which is the normal direction of travel: measure the window, then decide what fits, rather than designing the text and hoping.

A port is not always the smallest unit#

The word port is used for four different levels of hardware, and a record that does not say which one it means produces exactly the duplicate-01 failure this guide's second scenario describes.

A modular copper panel and a fiber cassette panel look alike in a rack and behave differently in a record. On a modular copper panel the module is often a block of six or twelve jacks whose numbering restarts, so port 01 exists once per module and the module reference is load-bearing. On a fiber cassette panel the front position is usually a duplex adapter fed by one leg of a multi-fiber trunk, so the cassette, the position and the strand are three separate facts and the trunk leg is a fourth that lives with the trunk rather than the panel.

Decide which levels your records carry before the first strip is printed, and keep the unused levels present and empty rather than absent. A field that is missing cannot be distinguished later from a field that was deliberately not applicable, and that distinction is the one an audit needs.

Where a module can be moved between slots, record whether the module's identity or its slot position is the anchor. Both are defensible. What fails is a record that quietly changes which one it means when someone swaps a cassette.

For trunks, cassettes and breakout legs, take the reference structure from the fiber trunk and breakout map and keep the panel-side port key consistent with it, so one connection is not described two ways at its two ends.

State the administration class before arguing about format#

ANSI/TIA-606-D describes four classes of administration, and the class sets how much context an identifier has to carry. Arguing about a port format without settling the class is arguing about the answer before the question.

The TIA Fiber Optics Tech Consortium's public overview of the standard describes Class 1 as covering "a premises that is served by a single equipment room (ER)", Class 2 as covering "a single building or of a tenant that is served by single or multiple telecommunications spaces", Class 3 as covering "a campus, including its buildings and outside plant elements", and Class 4 as covering "a multi-campus/multi-site system". TIA FOTC: TIA-606-D scope

This is why the two specifications quoted above look so different. The University of New Mexico states that it intends to create a Class 3 system of administration, which is a campus, so a room number is a sensible thing for a port label to carry: the building is the field that disambiguates. A single-hall colocation cage running Class 1 would be adding noise by printing one.

Declare the class in the naming scheme rather than inferring it from the labels. A scheme that is written for one class and applied to a site that has grown into the next one produces identifiers that are unique in the room and ambiguous in the estate, which is the failure the duplicate identifiers guide exists to resolve. The class is a property of the site, so it changes when the site grows, and the scheme should be re-read when it does.

None of the above is a clause-level requirement, a compliance outcome, or a statement of what any edition obliges a project to do. It is the vocabulary the standard supplies, used to make a local decision explicit.

Separate mapping errors from printing errors#

A patch-panel label can fail in several different ways. The printed numbers may describe the wrong ports. The numbers may be correct but drift away from their intended physical positions. A module boundary may be missing. The strip may fit but cover factory information or be unreadable in the installed view. Diagnose the failure before changing the template.

Compare the first port, the last port, and each meaningful group boundary with the factory references and controlled panel map. If every printed value is shifted by one number while the text centers align, investigate the starting value or sequence. If the values are correct but their centers increasingly miss the ports, investigate the template geometry and print process. If one group aligns and the next does not, inspect the grouping and boundary definitions.

If the physical panel and the controlled record disagree about port identity, route the discrepancy to the panel-map owner. Changing a strip to match an unverified spreadsheet can hide the original error. Preserve the observed factory references and both competing mappings until the owner resolves them.

Record the panel identity and exact model before comparing any proof. Two panels can look similar while using different reference structures or label areas. A template selected by appearance alone is not sufficient evidence that the proof belongs to the installed equipment.

Define the full record key for a port#

Start with the panel or chassis identity, then add the hierarchy needed to distinguish the port. Where numbering restarts inside modules, retain the module reference. Where a face, row, cassette, or slot is part of the hardware's reference scheme, preserve that context in the record. Copy the observed factory notation rather than substituting an informal number.

Distinguish the panel's asset identity from its current rack location when the site's records track both. A port key should still resolve to the intended physical panel if the location display changes. At the same time, the work order needs enough current location context for a technician to find that panel.

Write down which references belong to fixed chassis positions and which belong to removable modules. A module moved to another slot may retain its own physical identity while its location relationship changes. The map should show the actual arrangement under the site's model, not assume that every module is permanently tied to one position.

If a legacy schedule lists only a bare port number, identify how much context is missing. Do not fill in the module or panel from whichever object happens to be nearest during review. Keep the incomplete row unresolved until the intended reference is supported.

Choose the information the physical strip needs to carry#

Define the reading task at the panel. A technician may need to select a factory port, associate it with the correct panel, or find a cable's connection record. Decide which information belongs on the strip and which belongs in a nearby panel marker or controlled schedule. The physical layout should make that relationship clear without obscuring existing references.

Keep the panel ID visible in an approved location so a repeated port number cannot be mistaken for a neighboring panel. If a strip contains only port references, the viewer still needs a reliable way to identify the parent panel. If modules restart numbering, use the actual module boundaries and names in the proof.

Avoid placing changing service descriptions where they can be mistaken for physical port identities. A service name may be useful supplemental information under local policy, but the controlled record must retain the factory port reference. Record who maintains any changeable description so it does not become a stale substitute for the port map.

The final text, material, and placement need to fit the actual label area and the applicable equipment and site instructions. This guide's diagrams and worksheet dimensions are fictional comparison examples. They do not supply a universal strip size or approved mounting position.

Capture geometry with defined terms and units#

Record the dimensions required by the selected printing workflow using that workflow's definitions. Distinguish block length, repeated pitch and the gap between groups in your notes. Read the relevant documentation rather than copying a number between fields with similar names.

Keep port-center spacing, group boundaries, usable label area, and any offset from a physical reference distinct. A measurement without a description is easy to interpret incorrectly. State the units for every dimensional entry and identify whether the value came from documentation, a permitted measurement, or a fictional review example.

Use the actual installed model or a confirmed representative sample. Where mixed models occur in a rack, group the print work by the geometry and reference scheme that actually apply. Do not average dimensions across models to create a compromise strip.

Record the longest expected panel, module, and port text when planning the layout. The geometry can be correct while longer strings overlap adjacent positions or are clipped. Include those strings in the proof review so the chosen layout is evaluated against production content, not only short demonstration numbers.

If the required geometry cannot be established, leave the proof under review. A guessed dimension that looks plausible at the first port can produce a misleading installed strip.

Prepare an editable source without losing the port references#

Treat the spreadsheet or export as a controlled source for proof generation. Use one clearly defined row structure and preserve identifiers as text, including leading zeros and punctuation. Distinguish a port reference from a numeric sequence used only to order the print job.

Keep the panel, module, and factory-port fields separate where that makes review easier. A generated display string can combine them according to the approved template, but the reviewer should still be able to inspect the components. Record the source revision and template version that produced each proof batch.

Check imported values against the source before printing. Look for stripped zeros, unexpected blank rows, repeated starting values, and module numbering that failed to restart or restarted at the wrong boundary. Review the first and last entries of every group as well as representative intermediate rows.

If the source software automatically interprets a reference differently, repair the input handling through the responsible owner. Do not hide the transformation by manually correcting the printed output while leaving the generating file unchanged. The next reprint would reproduce the same mistake.

Keep the accepted source file and proof reference together. A worksheet named “final” without a revision or release decision does not tell the next person which batch is authoritative.

Select a template or software by the mapping it can preserve#

Start with the required panel references and geometry, then assess whether the available printing workflow can represent them. The useful comparison is practical: can it retain the exact port text, handle the observed group boundaries, preserve parent-panel context, and produce a proof whose scale can be checked?

A prebuilt panel template may save preparation time when it matches the exact model and intended media. Record how that match was established. A custom template may be necessary when the approved arrangement is not represented, but its dimensions and numbering still require review. Neither choice removes the need for an actual-size proof.

For a spreadsheet-driven workflow, compare the rendered values with the source after import. For a manually entered workflow, compare the sequence and module boundaries with the controlled map. For either workflow, keep the accepted template and source references so a later operator can reproduce the reviewed result.

Do not select software solely because it displays an attractive preview. The reviewable result is the correct physical association between each printed reference and its intended port. The project can use its existing approved tools if they support that outcome; this guide does not require a particular commercial application.

Inspect an actual-size proof in the panel context#

Print a proof through the intended production path and compare it at the designated label area using the site's permitted process. Verify the output scale instead of assuming that a screen preview or document page size guarantees it. Record the media, template, and relevant print settings with the proof evidence.

Check the first and last ports, every numbering restart, and every boundary where spacing or grouping changes. Then inspect intermediate positions so an error that cancels at the ends is not missed. Compare the text identity and its physical alignment as separate questions.

Review the proof with adjacent factory markings, panel identification, cable managers, and normal viewing conditions in mind. A strip can align correctly while making an existing reference difficult to read or pointing visually toward the wrong row. Record the relationship between the proof and those surrounding features.

Have a second reader select ports from the proof and controlled map. Give them specific references, including one at a group boundary and one whose number repeats in another module. Ask which physical port they select and what parent context disambiguates it. A person familiar with the panel can unintentionally compensate for a confusing strip, so the review should rely on the displayed information.

Use the error pattern to choose the next correction#

When all text is displaced by a similar amount, inspect the proof's starting reference and output positioning. When misalignment grows across the strip, compare the documented pitch, repeated spacing, and print scaling. When only the second or later group is displaced, inspect the boundary and group-clearance definitions. These are diagnostic branches for review, not a substitute for the printer and template instructions.

When alignment is good but numbering starts at the wrong value, correct the source sequence or starting reference. When a module restarts numbering incorrectly, correct the grouping logic and compare every boundary affected by that change. When one field is truncated, review the longest actual text and the available area before shortening any identity.

Change one relevant input at a time when practical and retain the failed proof reference. That helps the reviewer see which correction addressed the observed defect. Recheck the complete affected strip after a change, because a correction that improves one checkpoint can shift another.

If the panel map remains uncertain, stop the print iteration and resolve the identity issue. No amount of geometric adjustment can validate the wrong mapping.

Scenario: the second group drifts while the first group aligns#

In a separate fictional case, panel PNL-G07-301 at DC01/H1/R301/U40 has two documented groups of six ports. Proof PRF-G07-301 places the first group's references correctly, but the second group begins too close to the first. The source values 01 through 12 are correct, so changing the numbering would not address the failure.

The reviewer records the exact model, group boundaries, template version, and observations at ports 01, 06, 07, and 12. Comparison with the selected workflow's definitions shows that the group-clearance input was omitted. The diagnosis is a template-geometry error at the group boundary.

The print owner corrects that input using the actual approved dimension and produces a new proof revision. The example supplies no production measurement. The second reviewer checks all twelve physical associations, confirms that the group boundary is represented correctly, and verifies that factory markings remain readable.

The accepted template and proof revision are linked to the panel map. The earlier proof is identified as rejected so it cannot be mistaken for the released strip. After authorized application, the installed review records the actual result. Closure includes the corrected template input, accepted proof, and installed evidence rather than only a statement that the latest print “looks better.”

Scenario: repeated port 01 values lost their module context#

In another fictional case within DC01 / H1, chassis PNL-G07-302 at DC01/H1/R302/U38 contains modules A and B, each with factory port 01. A spreadsheet export combines the rows as PNL-G07-302/01 and PNL-G07-302/01. The printed strip repeats 01 twice without a clear module relationship.

The panel-map owner compares the observed factory hierarchy and the source records. The two entries are separate ports, not a duplicate record to delete. The corrected keys are PNL-G07-302/A/01 and PNL-G07-302/B/01, with full site, hall, and location context retained in the review record.

The template is revised to preserve the module references and their physical boundaries. The second reader is asked to locate A/01 and B/01 independently. The review also checks that any cable endpoint schedules referencing the ambiguous bare value receive a resolved outcome.

The physical strip and record correction close together after the approved work is reviewed. The prior ambiguous values remain in the discrepancy history so an old export can be interpreted. If either module's identity or current slot cannot be established, that relationship remains unresolved rather than being assigned by its left-to-right appearance alone.

Adapt the process to brownfield repairs and new builds#

For an established panel, preserve the installed text, current map, and relevant connection references before removing or replacing anything. Identify whether the work changes only readability, corrects a mapping error, or introduces a new local display convention. Those scopes have different dependencies.

Avoid changing factory port identities to fit a legacy schedule. Resolve the schedule through a controlled crosswalk instead. Where equipment access is constrained, record the checkpoints that could be reviewed and the approved plan for those that remain inaccessible. A desk proof cannot close an installed observation that never occurred.

For a new build, review the exact model, naming hierarchy, and proof process before producing the full batch. Keep mixed panel types and template revisions distinguishable in the work pack. The receiving team should get the approved panel map, accepted proof references, and unresolved exceptions with the editable source.

For replacements or module moves, recheck the hierarchy and physical arrangement affected by the change. A previously accepted template remains relevant only to the geometry and references it actually describes. Do not reuse an old proof's approval as evidence for a materially different panel.

Close the map and preserve reproducibility#

The panel owner should be able to retrieve the current port map, the template that generated the strip, and the evidence showing its accepted physical association. Record the governing model, source revision, proof revision, and installed review outcome. Keep the evidence concise enough that a future replacement can start from the reviewed information.

Check dependent cable schedules when a port key or module context changed. A visually correct strip does not close a stale endpoint record. Give each unresolved dependency an owner and retain the correction crosswalk.

The final reviewer should select the intended ports from the released map and installed identification, including boundary and repeated-number cases. Close the problem only within the observed scope. If a module or face remains unreviewed, state it explicitly so the next work package does not inherit an unsupported acceptance claim.

Build a port strip from measured geometry#

A request for a '24-port label template' leaves the physical layout unresolved. Two 24-port products can have different grouping, rows, label windows, and numbering orders. Record the installed model and viewpoint, then inspect the actual strip or manufacturer's layout reference. Preserve port identity separately from a connected switch interface such as Gi1/0/24: the interface belongs in the mapping record and does not automatically replace the panel's port number.

Measure spacing using defined reference points. Keep center-to-center pitch within a group separate from the gap between groups and the usable label height. A software field named group clearance may use different reference points than the dimension you measured. Write down the meaning of each input instead of repeatedly adjusting a number until the first label looks centered. Prove the complete strip against the actual panel before releasing the batch.

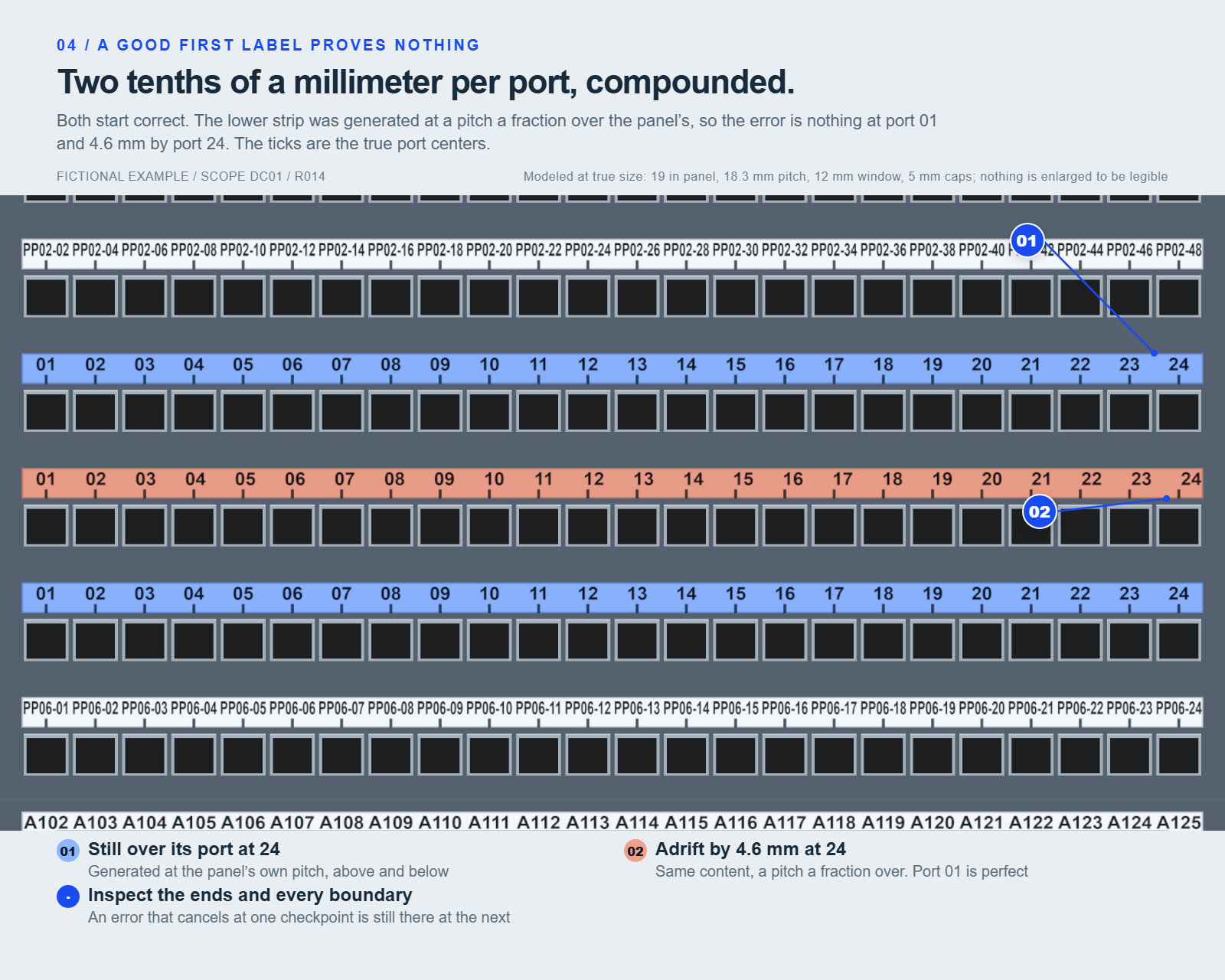

Check cumulative displacement. In a fictional row with 24 positions, an error of 0.2 mm per interval yields 4.6 mm between the first and last positions. A good first label therefore does not establish the remaining fit. Inspect the first, last, and every group boundary, including row transitions. Use the longest expected identifier to expose clipping before the batch is released.

Treat blanks as data. An unused port may still need a numbered position in the strip; deleting its schedule row can shift all later values. Document whether a record means unused, reserved, missing evidence, or excluded from this print job. Keep those states distinct from a blank accidentally introduced by an import. Review the physical sequence against the exported row sequence before production.

Save an accepted proof with the panel model, template revision, media, printer, orientation, scaling, and cutter settings. If the label is printed through a document or browser, verify the resulting physical dimensions rather than assuming that a percentage setting reproduced the intended size. A changed driver, model, or media stock creates a reason to recheck the proof. Retain the old setup as history while clearly marking the current accepted revision.

Build the strip itself with the port label strip builder, which takes the port count, the number of rows and the order the panel counts in as separate inputs, and returns the row, the position along that row and the printed number as three separate columns, so the numbering order is stated rather than inferred from a sample. It settles sequence, not spacing: take the pitch from the panel and prove it at full size as below. Record the result with the patch-panel layout and print-proof record to collect measurements and acceptance evidence. It complements the port mapping worksheet: one controls the relationship between identifiers, while the other controls how those identifiers occupy the actual panel windows.

Worked example#

Fictional twelve-port panel DEMO-PP12 has two groups of six.

Panel DC01/H1/R014/PP01
Checkpoint          Factory port   Label proof   Review
First port          01             01            Aligned
Group 1 last port   06             06            Aligned
Group 2 first port  07             07            Aligned
Last port           12             12            Aligned

Comparison points are illustrated, not print dimensions. The worksheet's fictional measurements are not hardware specifications.

Common mistakes#

• Substituting a remembered model with a similar-looking panel.
• Checking only the first port while cumulative spacing error grows.
• Renumbering factory ports to make an incorrect strip appear aligned.

Verification#

• Panel model and factory numbering are confirmed.
• Group count and numbering direction match.
• Dimensions carry units and clear definitions.
• First, last, and boundary positions align.
• A second reader selects the intended ports from the proof.

Worksheet: Patch-panel map and strip proof sheet#

Fields define one row; sample values are fictional. Leave working-sheet dates blank until their recorded event occurs. Sample status: Example only.

Frequently asked questions#

Should the new label replace factory numbers?#

Preserve the manufacturer's port identity. Add the site's context in the designated labeling area and document any alias explicitly.

The numbering is right but the strip still drifts. What next?#

Check the template dimensions, media selection, and print scaling. Reprint a full-size proof before producing the batch.

What size should a patch-panel label be?#

Use the actual model's designated area, the approved media, and the relevant application instructions. The example dimensions in this library are fictional. Establish the required geometry and prove the complete text at actual size before releasing a batch.

Can I prepare the source in Excel?#

Yes, if that fits the team's approved workflow and preserves exact identifiers, module boundaries, and source revision. Review the imported and rendered values, including leading zeros. The spreadsheet is a source record; the physical proof still needs its own alignment and readability check.

Does a standards reference provide a universal numbering template?#

Do not infer a universal port sequence or strip dimension from a broad standards reference. Follow the project's adopted requirements and the actual equipment references. Keep local naming choices, manufacturer geometry, and proof-review decisions clearly identified in the record.

Are patch panel ports numbered left to right?#

Often, but not reliably, and the exception is common enough to check every time. Panels with two rows of jacks are numbered either along each row or down each column in pairs. Dartmouth College's identification specification carries both patterns in the same document: the CommScope M2000 panels it uses for Cat6A are identified in vertical pairs with odd numbers above and even below, while the Siemon MX-PNL-48 panels it uses for Cat6 arrive pre-identified as two rows of twenty-four, 1-24 and 25-48.

Read the order off the installed panel rather than off the template. A strip built for the wrong order lands every number on the wrong jack while its spacing, media and print quality are all correct, which makes it one of the harder defects to spot on a bench proof.

Should the patch panel label show the port number or where the cable goes?#

Both are published practice and the choice is yours to make and record. A port number identifies the hardware and stays true when the patching changes. A destination answers the question a technician usually has without a lookup, but it becomes wrong rather than merely stale the moment a cord is moved, and it has to be maintained on the same schedule as the connections themselves.

If you print destinations, decide who owns re-printing them and how a move order triggers it. If you print port numbers, make sure the panel identifier is marked somewhere in the same view, because a bare port number is ambiguous across every other panel in the rack.

What is a 24-port patch panel label template?#

It is not a single thing, which is why searching for one leads to strips that do not fit. A port count does not establish the numbering order, the grouping, the label window size, or whether the panel is flat or angled. Siemon's MAX ordering information lists its label accessories by panel family rather than by port count, with one sheet described for the sixteen-port panel and another for the twenty-four and forty-eight port panels.

Start from the installed model, not the port count. Record the order, the group boundaries, the usable window, and the media the panel family takes, then build or select a template that represents those four things.

Do I have to relabel a panel that already has port numbers printed on it?#

Usually not, and reprinting numbers that were already correct adds a way to be wrong. Dartmouth's specification states that its pre-identified Siemon panels do not need to be relabeled apart from the panel designator on the left-hand side, which is the field the factory cannot supply.

The useful question is what the factory numbering does not tell a reader. In almost every case that is the panel's own identity, so adding the panel identifier in an approved position and leaving the port numbers alone is both cheaper and safer than a full strip.

How do I label a 48-port panel that is numbered in two rows?#

Establish first whether the two rows are one continuous sequence or two blocks, because the fix differs. A panel identified as 1-24 on the upper row and 25-48 on the lower is one sequence in two physical rows, and the strip has to restart its horizontal position at the row transition while continuing its count.

If instead the panel is built from modules whose numbering restarts, the module reference has to appear in the record and usually on the strip, or two ports share a printed value. Check the first and last position of every row and every module boundary on an actual-size proof, not just the ends of the panel.

What goes on the back of a patch panel?#

The rear is read by whoever terminates or traces the permanent cabling, not by whoever patches, so it usually carries the far end of the run rather than the port's own number. Deciding the two faces separately is deliberate: they answer different questions and there is no requirement that they match.

Record both decisions with the panel. A rear label that was generated from the front column, or a front label generated from the rear one, is a common result of filling both faces from a single spreadsheet column and is difficult to detect once the panel is racked and cabled.

How should fiber cassette ports be identified?#

Treat the cassette and the position as separate fields, and add the strand or fiber position only where polarity or individual strands are actually traced. A front adapter on a cassette panel is usually a duplex position fed by one leg of a multi-fiber trunk, so the trunk leg is a fourth fact and it belongs with the trunk record rather than the panel strip.

Keep the panel-side key consistent with the trunk-side key so one link is not described two different ways at its two ends. Where a cassette can be moved between slots, record whether the cassette's identity or the slot position is the anchor before the first move happens rather than after.

Which TIA-606 administration class applies to a data center patch panel?#

That depends on the site, not on the panel. The TIA Fiber Optics Tech Consortium's overview of ANSI/TIA-606-D describes Class 1 as serving a premises with a single equipment room, Class 2 a building or tenant with one or more telecommunications spaces, Class 3 a campus including its buildings and outside plant, and Class 4 a multi-campus or multi-site system.

The class sets how much context a port identifier has to resolve within, which is why two well-run sites print visibly different labels on identical hardware. Declare the class in the naming scheme and re-read the scheme when the site grows into the next one. This library does not state which class a project is obliged to adopt; that is a project decision recorded in its own requirements.

More worked label examples

Two additional ways to apply this guide. Keep the exact identifiers and relationships consistent with your own approved records.

SCOPE: DC01 / H1; panel PNL-G07-101 at R101 / U40
FACTORY REFERENCES
             01    02    03    04    05    06
PORTS        [ ]   [ ]   [ ]   [ ]   [ ]   [ ]
BAD PROOF    02    03    04    05    06    07
GOOD PROOF   01    02    03    04    05    06

PANEL ID FACE: [PNL-G07-101 | DC01-H1-R101 U40]
PORT LABEL STRIP FACE
+----+----+----+----+----+----+
| 01 | 02 | 03 | 04 | 05 | 06 |
+----+----+----+----+----+----+
Record key example: PNL-G07-101 / 03 -> factory port 03
Proof PRF-G07-101: actual-size fit; all six centers checked

SCOPE: DC01 / H1; chassis PNL-G07-201 at R201 / U38
FACTORY HIERARCHY
PNL-G07-201
  +-- MODULE A: [01] [02] [03] [04]
  +-- MODULE B: [01] [02] [03] [04]

LABEL FACES
[PNL-G07-201 / A]   [A:01] [A:02] [A:03] [A:04]
[PNL-G07-201 / B]   [B:01] [B:02] [B:03] [B:04]

AMBIGUOUS RECORD: PNL-G07-201 / 01
RESOLVED PAIR 1:  PNL-G07-201 / A / 01 -> CBL-G07-201
RESOLVED PAIR 2:  PNL-G07-201 / B / 01 -> CBL-G07-202
Proof PRF-G07-201 retains visible factory module letters

Sources and applicability

• Brother: Patch Panel mode ↗

  Model-specific block length, block count and layout controls. Panel dimensions must be measured separately. Checked October 2, 2026.

  Read scope and linked guides
• TIA FOTC: TIA-606-D scope ↗

  Public scope overview of the administration standard and its four classes. Quoted for the class definitions only; no clause text is restated and no compliance outcome is asserted.

  Read scope and linked guides
• University of New Mexico: Identification for communication systems ↗

  Campus specification dated October 1, 2022: a stated Class 3 system of administration, a from/to label format, and patch-panel ports carrying the served room, outlet and jack position. That campus’s convention, not a universal scheme.

  Read scope and linked guides
• Dartmouth College: Identification for communications systems ↗

  Guideline dated March 22, 2021: a floor/space/panel/port identifier, two accepted strip contents with the reason for each, and two different numbering orders on forty-eight-port panels. Product behavior as reported by the specification.

  Read scope and linked guides
• Siemon: MAX patch panels spec sheet ↗

  Manufacturer ordering information: port counts, rack-mount heights, flat against angled panels, and label accessories listed by panel family rather than port count. No numbering order is established by it.

  Read scope and linked guides

Planning guides and companion documents

• Choose a label printer for the work you actually do
• Choose barcodes, RFID, or AIM for the evidence you need
• Plan a legacy-room relabeling program
• Patch-panel layout and print-proof record
• Panel and switch port relationship schedule
• Label printer selection and trial plan
• Barcode, RFID and AIM technology pilot plan
• Legacy-room baseline, wave, and uncertainty planning template

Related guides
