I cannot identify the other cable end

Print the far end on each cable label, in the vocabulary of the hardware it names, then check the longest line against the label’s print-on area.

By Rackstamp / GUIDE 06 / Source review records incomplete: 7 of 8 dated / UPDATED

On this page

The practical answer

A cable label carries one cable identifier that is the same at both ends, and endpoint text that is not. In the two published specifications read for this guide, most cables carry the far end only, in the vocabulary of the hardware at that end, because the near end is the rack the reader is already standing in front of; the exceptions are risers, which are fat enough to take a larger label. Whether the text fits is arithmetic: a wrap's width along the cable decides the characters on a line and the cable's diameter the lines, so at arm's length the narrowest wrap listed for a Category 6A UTP cable holds about six characters, and a twenty-character room-and-port address needs one three times as wide. A label records an assignment; it does not establish that the link works, authorize a disconnection, or prove that either port is live.

The method, examples, and sources below explain the scope and checks.

A cable joins R014 / PP01 / 07 and R021 / PP02 / 19. Fixed endpoint names A and B stay the same at both ends. If labels use local HERE and THERE instead, those assignments reverse at the opposite end.

Examples are fictional local conventions. Unless another location is shown, the scope is DC01 / H1. Keep that scope with shortened identifiers.

What must agree on the two cable labels?#

Use the port-strip builder to preview the installed panel’s numbering order and export its sequence; verify it against the panel before printing.

A cable label carries one identifier that is the same at both ends, and endpoint text that is not. In the two public specifications read for this guide, most cables spend that endpoint text on the far end: the patch panel end of a patch cord names the switch and port, and the switch end names the panel and port. The near end is the rack the reader is already standing in front of. Risers, which are fatter and take a larger label, are the exception and carry from and to.

The reason is arithmetic rather than style. A wrap label's width along the cable decides how many characters fit on a line, and the part listed for the cable's diameter decides how many lines. On the narrowest wrap a manufacturer lists for a Category 6A UTP cable, an identifier read at arm's length is about six characters on a line. A room-and-port address is twenty, and fits on a line only on a label three times as wide. A scheme that requires full endpoints on the label has therefore chosen a wide label, whether or not anyone wrote that down; the alternatives are a shorter identifier or a record the reader can reach at the rack.

Question What settles it
Does the cable identity match at both ends? The controlled connection record, not the two labels agreeing with each other
What endpoint text goes on this face? The far end, in the vocabulary of the hardware it names
Will it fit? The cable's outside diameter, the label's print-on area, and the distance it is read from
Who decides the format? The record owner, before the batch is generated

The following fictional local convention prints a viewpoint layout in full so the example can be read independently. It is this library's editorial example, not a prescribed syntax, and the section below on what a cable label can hold shows why a layout like this needs a larger label than the cable usually gets.

Field Label at the first endpoint Label at the other endpoint
Cable DC01/H1/CAB-Q06-901 DC01/H1/CAB-Q06-901
HERE DC01/H1/R901/PP01/07 DC01/H1/R902/PP02/19
THERE DC01/H1/R902/PP02/19 DC01/H1/R901/PP01/07
Observed result Next decision
Same cable ID and reciprocal verified endpoints Review the physical placement and source revision
Same cable ID but both labels call the same endpoint HERE Correct the viewpoint mapping and recheck the pair
Different cable IDs on the two ends Resolve identity before issuing a replacement pair
A plausible destination has no supporting evidence Keep it unverified and assign the endpoint investigation
Only an ID is printed Demonstrate the approved record lookup at the point of work
The text is correct and does not fit the label Change the label, the identifier or the record access, and reissue the pair

Corning's historical labeling brochure provides local and remote documentation context; its scope does not authorize tracing by disconnecting equipment. Corning labeling and documentation brochure.

A rejected label pair should retain the exact mismatch and its source-row reference. Replace the approved output through the work process, then have another person compare both installed ends with the same record. Correct appearance at one end is not the closeout condition.

When to use#

Use this guide for missing or outdated cable destinations. Follow the site's approved identification process; this documentation workflow does not authorize manipulating or disconnecting operational cables.

Corning's January 2015 labeling guide illustrates local and remote references on cable labels and identification at both cable ends. Its examples cite older standards; use the project's specified edition for requirements. Corning labeling and documentation

What to gather#

Collect the cable ID, connection schedule, rack and panel identifiers, factory port references, accessible endpoint observations, and the record owner.

Method#

  1. Copy the visible identifier exactly and find its connection record. Check that the lookup identifies the intended cable rather than several similar names or an old record.
  2. Record the local termination using the complete site, hall, rack, panel or device, and port context. Note which face or module matters for locating it.
  3. Establish the remote termination through the approved field process and reconcile it with the record. If the relationship remains uncertain, retain an unresolved entry for further authorized investigation.
  4. Prepare both label texts from the same worksheet row. Keep the cable ID unchanged while reversing HERE and THERE descriptions for the opposite end; use your approved format.
  5. Have a second reader compare the paired proof with the confirmed endpoint record. Complete authorized application and documentation together, preserving exceptions that prevent closure.

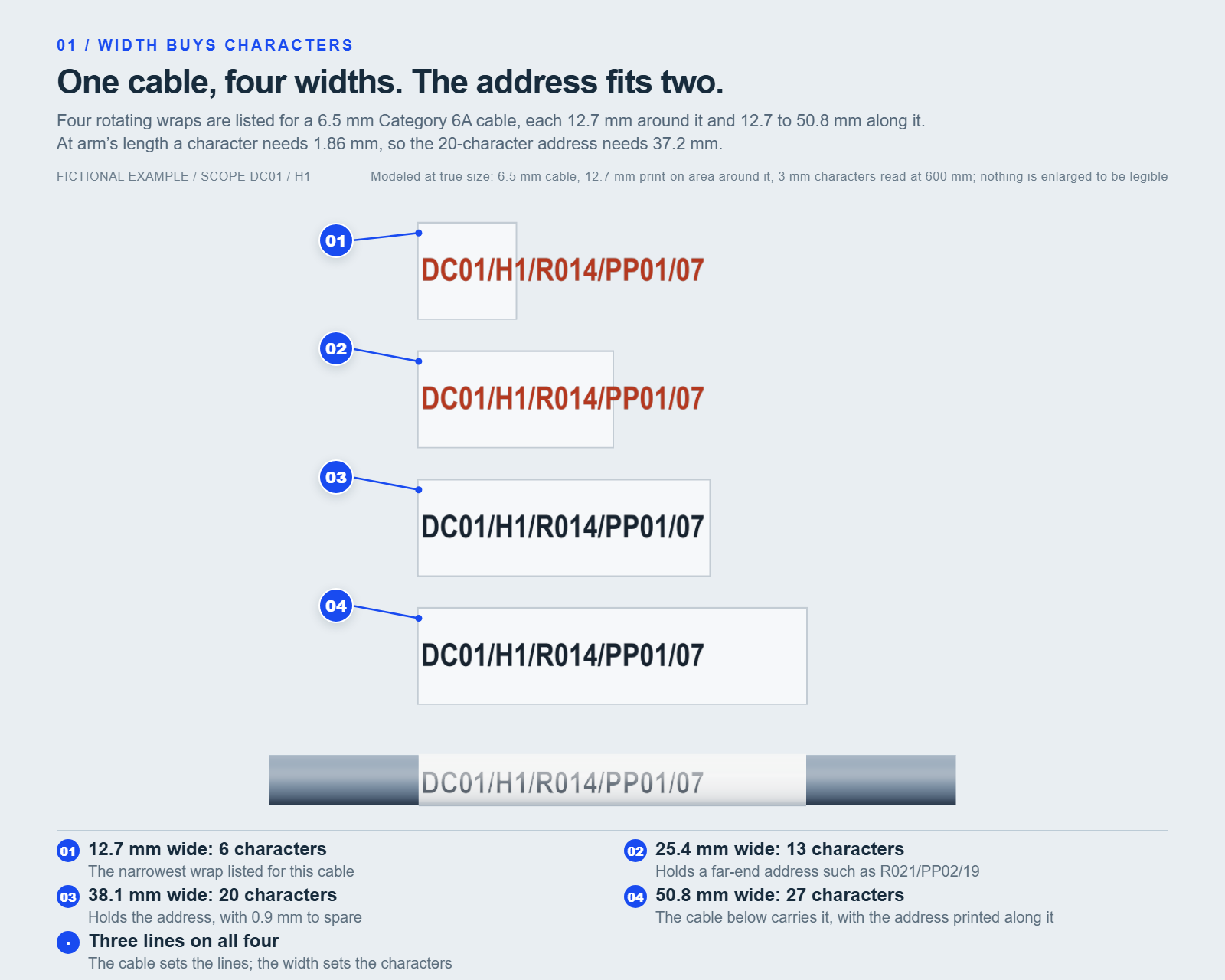

Four print-on areas listed for the same 6.5 mm Category 6A cable, drawn flat at true size from one left edge: 12.7, 25.4, 38.1 and 50.8 mm wide, each 12.7 mm tall. The same room-and-port address, DC01 slash H1 slash R014 slash PP01 slash 07, is laid across each at a 3 mm character height. It runs past the right edge of the two narrow ones, in red, and fits within the two wide ones. Beneath them, a cable wears the widest label with the address printed along it.
Fictional example; scope DC01 / H1. Every identifier is fictional, but the cable, the print-on area, the clear tail and the printed characters are modeled at the sizes the part and this library’s legibility model give them, read at 600 mm; nothing is enlarged to be legible. Drawn square-on, so lengths along the cable compare directly across the picture; the four widths are the parts the catalog lists for this cable’s diameter range. Open diagram at full size ↗

What a cable label can actually hold#

A cable label is sized by the cable and then chosen by its width. A self-laminating wrap carries a print-on area and a clear tail that laminates over it, and each part is listed for a range of cable outside diameters. Panduit's cable labeling catalog lists, for every part, a width, a length, a print-on area height and the outside-diameter range it is listed for, which turns "will the identifier fit" from a judgment into arithmetic. Panduit cable labeling catalog

Which dimension limits a line depends on how the label sits. The length is what wraps around the cable, so the print-on area height is measured around it, and the width runs along the cable. Panduit's product drawing for the smallest part in the table puts its 0.25 inch print-on area on the 0.75 inch length of a label 0.50 inch wide, Panduit Turn-Tell label drawing C11067 and the installation instruction for these labels shows the printed legend running along the cable. Panduit Turn-Tell installation instruction So a line of text is bounded by the width, and lines stack within the print-on area height.

The character height below is this library's own model rather than a requirement: character height is the reading distance divided by a reading ratio, and character width is estimated at roughly 0.62 of the height, which suits the condensed faces commonly used on cable labels. Reading at arm's length, 600 mm at a 1:200 ratio, gives a 3.0 mm character height, so each character needs about 1.86 mm along the cable and each line about 4.05 mm around it. Work your own cable and distance in the label size and legibility calculator.

Turn-Tell part Width along the cable Print-on area around the cable Cable outside diameter Listed for Characters per line Lines
R050X075X1J 12.7 mm 6.4 mm 3.1 to 4.1 mm Category 6, 28 AWG 6 1
R100X075X1J 25.4 mm 6.4 mm 3.1 to 4.1 mm Category 6, 28 AWG 13 1
R050X125X1J 12.7 mm 9.7 mm 4.1 to 5.6 mm Category 3 UTP 6 2
R100X125X1J 25.4 mm 9.7 mm 4.1 to 5.6 mm Category 3 UTP 13 2
R050X150X1J 12.7 mm 12.7 mm 5.6 to 7.1 mm Category 5e, 6 and 6A UTP 6 3
R100X150X1J 25.4 mm 12.7 mm 5.6 to 7.1 mm Category 5e, 6 and 6A UTP 13 3
R150X150X1J 38.1 mm 12.7 mm 5.6 to 7.1 mm Category 5e, 6 and 6A UTP 20 3
R200X150X1J 50.8 mm 12.7 mm 5.6 to 7.1 mm Category 5e, 6 and 6A UTP 27 3
R100X225X1J 25.4 mm 19.1 mm 7.1 to 9.9 mm Category 6 FTP, 6A UTP and FTP 13 4
R200X225X1J 50.8 mm 19.1 mm 7.1 to 9.9 mm Category 6 FTP, 6A UTP and FTP 27 4
R100X400X1J 25.4 mm 25.4 mm 9.9 to 24.1 mm 2 to 1 AWG 13 6
R200X400X1J 50.8 mm 25.4 mm 9.9 to 24.1 mm 2 to 1 AWG 27 6

Part numbers, widths, print-on area heights and diameter ranges are Panduit's, from the catalog's Turn-Tell table; the last two columns are this library's arithmetic at the stated height with the legend read along the cable, not the manufacturer's claim. The same table lists R100X150X1J with blue, red and yellow print-on areas as well. The catalog's self-laminating polyester labels are built the same way, with at least two widths for every diameter range, listed from a 2.0 mm cable.

The row this guide works from is R050X150X1J, the narrowest part listed for a Category 6A UTP cable. On it, an identifier read at arm's length is about six characters on a line and three lines deep. Three wider parts are listed for the same cable, and width buys characters without buying lines: 13 on a line at 25.4 mm, 20 at 38.1 mm and 27 at 50.8 mm, still three lines each. A twenty-character room-and-port address needs 37.2 mm, so it fits on a line only on the two widest, and on the 38.1 mm part with 0.9 mm to spare. A fatter cable is what buys lines: one on the thinnest cable in the table, six on the thickest.

Two further consequences follow from the same table.

On a 6.5 mm cable the circumference is 20.4 mm, so a 12.7 mm print-on area covers about 0.62 of a turn. The legend faces one way and a reader coming from the other side sees the clear tail. Every part in the table is a Turn-Tell label, which is the catalog's answer to that: once its adhesive anchor is detached the label is free to rotate and slide on the cable, so the legend can be turned to face whoever is reading it, and the catalog describes the range as ideal for high-density or space-constrained cable applications. Panduit Turn-Tell installation instruction

The table also stops. Its thinnest cable is 3.1 mm. The catalog's self-laminating polyester labels are listed from a 2.0 mm cable, and for 2 mm and 3 mm simplex fiber the catalog's answer is a carrier rather than a smaller label: the LabelCore system is a flexible PVC sleeve, 1 inch long, that provides a larger labeling surface on small fiber cables, is used with a 25.4 mm wide self-laminating label, and is located on a straight section at least 2 inches from the fiber boot.

One material note that matters when the arithmetic fails. Both wrap materials in the catalog, the polyester and the Turn-Tell, state that they are for wrap format applications and are not recommended for flag format. Buying print area by switching to a flag is therefore a material decision as well as a shape decision, not a free substitution within the same part family, and a wider wrap from the same table is worth checking first.

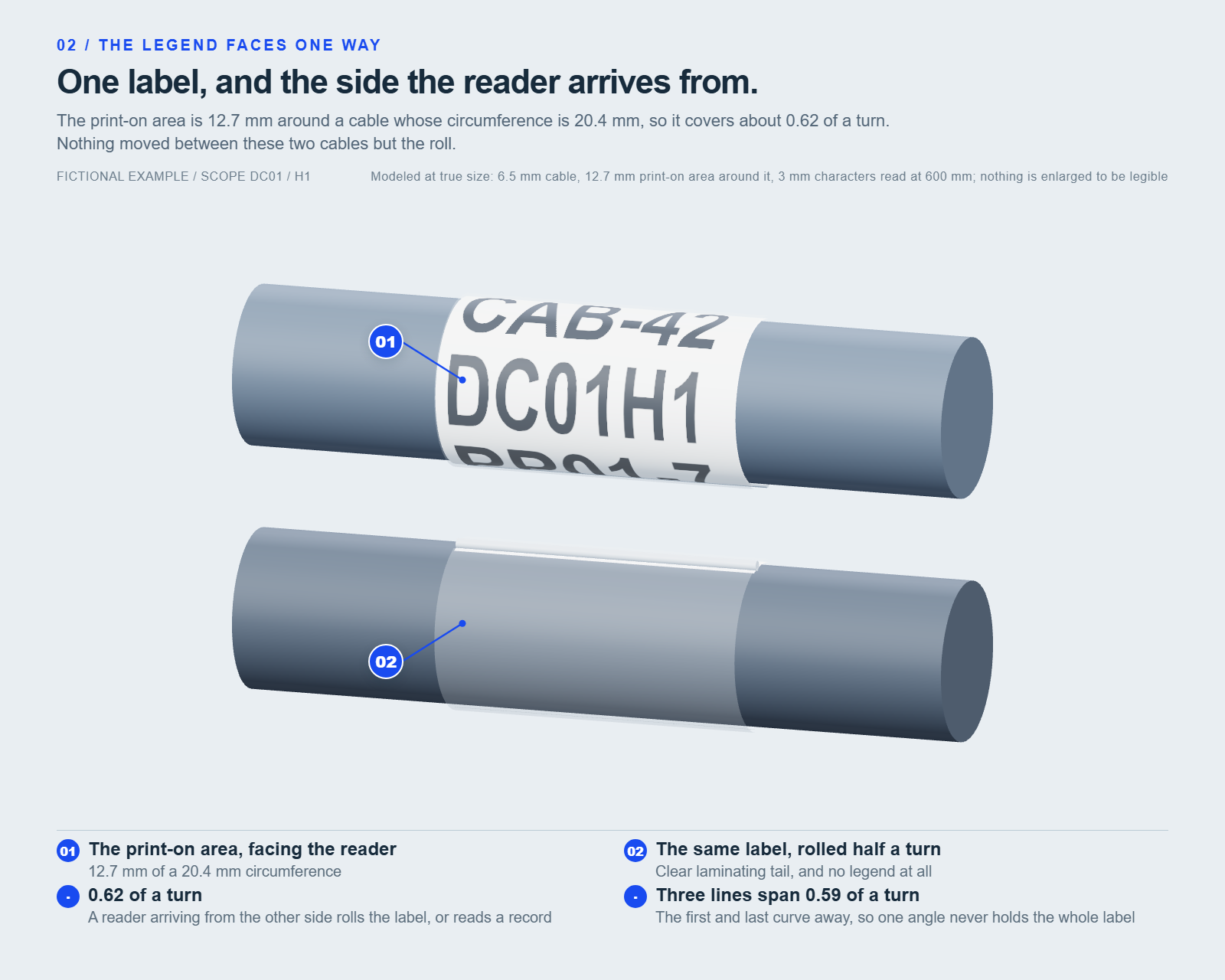

Two identical 6.5 mm cables, each carrying the same self-laminating label, seen at an angle so their cut ends show. On the upper cable the white print-on area faces the reader and the middle line, DC01H1, reads clearly, while CAB-42 above it and PP01-7 below it curve away around the cable. The lower cable has been rolled half a turn: the same label shows only a band of clear laminating film over the jacket, and no legend at all.
Fictional example; scope DC01 / H1. Every identifier is fictional, but the cable, the print-on area, the clear tail and the printed characters are modeled at the sizes the part and this library’s legibility model give them, read at 600 mm; nothing is enlarged to be legible. Viewed at an angle so the cable reads as a tube; this figure states a fraction of a turn rather than a length, so it is the only one in the set that is not drawn square-on. Open diagram at full size ↗

What two published specifications put on a cable label#

Institutional cabling specifications are published in full and can be read without a subscription, which makes them the only place to see a complete labeling scheme rather than a summary of one. Two are used here. Neither is a standard and neither binds anyone else's project; each establishes what one owner specified, and they are cited for that.

The University of New Mexico's identification section 27 05 53, dated October 1, 2022, states its intent to create a Class 3 system of administration. University of New Mexico identification section The University of Houston's Telecommunication Infrastructure Standards, revision 1.17 dated March 2012, sets a minimum standard for that campus and describes itself as a starting point for collaboration rather than a final specification. University of Houston telecommunication infrastructure standards

Specification Cable and end What that end carries
New Mexico Horizontal copper, telecommunications room end Room number, outlet number and jack position of the other end
New Mexico Horizontal copper, outlet end Data, telecommunications room, rack, patch panel, port
New Mexico Riser copper, both ends From and to, cable count, pair information
New Mexico Riser fiber, both ends From and to, fiber type, fiber count
Houston Copper patch cord, patch panel end Switch and port number
Houston Copper patch cord, switch end Patch panel and port number
Houston Outside plant fiber, each end Far-end building name and number, mode, strand count
Houston Riser fiber, both ends Far-end room number, strand count, mode

Six of the eight rows carry the far end only. Houston's patch cord rule states that pattern in a single sentence: the patch panel end carries the switch and port number, and the switch end carries the patch panel and port number. New Mexico's horizontal scheme does the same thing in two vocabularies, one for each kind of terminating object, and both of Houston's fiber rules name the far end at each end.

The two exceptions are worth more than the rule. New Mexico labels riser copper and riser fiber from and to, which is both ends on one face. Those are the two fattest cables in the table, and a fatter cable takes a label with more lines: in the catalog's rotating wraps, every step up in cable diameter adds lines, from one on a 3.1 mm cable to six above 9.9 mm, while the characters on a line depend only on the width chosen. Printed as from and to on separate lines, the relationship needs two. The pattern is consistent with the size of the object being labeled rather than a house style applied uniformly, though neither specification states its reason.

Either way, none of these rows matches what the field reports. The pages that rank for this question describe a cable label as carrying the same information at both ends with the order reversed, so the reader takes the near half from one line and the far half from the other. No row does that. The far-end-only rows print one end's worth of text and let the reader supply the near end by standing at it; the from/to rows print a relationship, which is a third thing again.

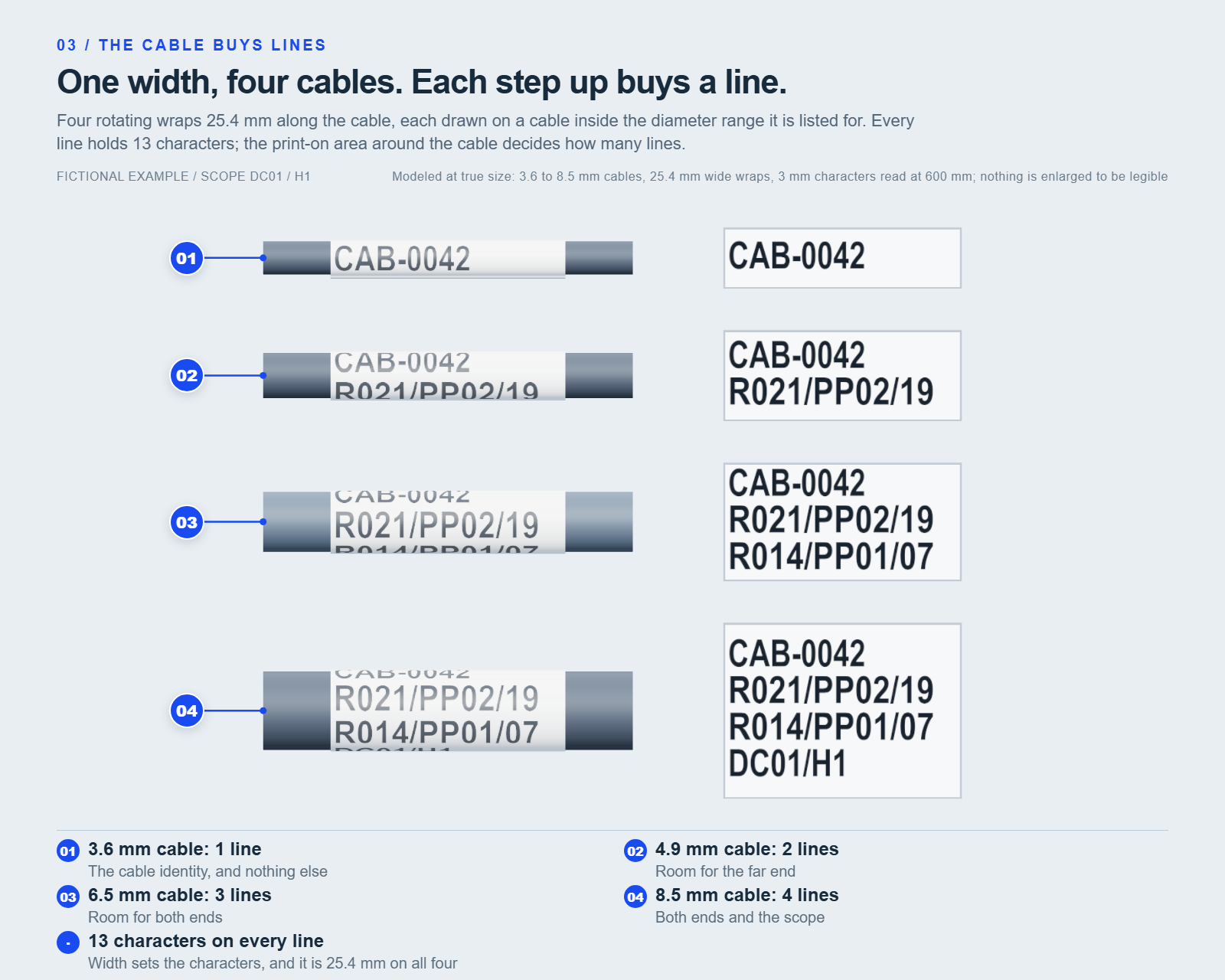

Four cables of increasing thickness, 3.6, 4.9, 6.5 and 8.5 mm, each wearing a 25.4 mm wide rotating wrap listed for its diameter, with that wrap’s print-on area drawn flat to its right at true size. The print-on areas grow taller with the cable and hold one, two, three and four lines of 3 mm text: CAB-0042, then R021 slash PP02 slash 19, then R014 slash PP01 slash 07, then DC01 slash H1. On the cables themselves the outer lines curve out of sight.
Fictional example; scope DC01 / H1. Every identifier is fictional, but the cable, the print-on area, the clear tail and the printed characters are modeled at the sizes the part and this library’s legibility model give them, read at 600 mm; nothing is enlarged to be legible. Each cable is drawn at a diameter inside the range its part is listed for; widths and print-on area heights are the catalog’s, and every line is set at the same 3.0 mm height. Open diagram at full size ↗

Where the label goes, and why one distance is not the rule#

The distance from the termination to the label is quoted in the field as a single number, usually within twelve inches, and attributed to the standard. Neither specification read for this guide uses one distance.

Specification Cable and end Distance stated
New Mexico Horizontal copper, telecommunications room end Within 6 inches of the termination point
New Mexico Horizontal copper, outlet end 4 inches from termination, visible when the cover plate is removed
New Mexico Coaxial drop at the splitter or tap Within 12 inches of the termination point
New Mexico Coaxial drop at the outlet 4 inches from termination
Houston Outside plant fiber at a conduit Between 12 and 36 inches from the conduit, or the closest clearly visible point
Houston Outside plant fiber along its run At 200-foot intervals, or the closest point that maintains clear visibility
Panduit LabelCore sleeve on fiber On a straight section at least 2 inches from the fiber boot

Seven placement rules across two specifications and one manufacturer, and they are not variations on a single figure. They fall out of what the reader will be able to see and reach once the work is finished: 4 inches at an outlet because the label has to clear the cover plate, 12 to 36 inches at a conduit because the cable disappears into it, 2 inches from a fiber boot because the boot is the part that bends.

The TIA administration standard is where the field says the twelve-inch figure comes from. What the publicly readable scope establishes is that ANSI/TIA-606-D, published October 2021, is the Administration Standard for Telecommunications Infrastructure, that it defines four classes of administration, and that it covers identifiers, labels, records, linkages and reporting, with identification of patch cords, equipment cords and direct equipment-to-equipment cables treated in an annex. ANSI/TIA-606-D scope The scope page does not establish a placement distance, and this guide does not restate clause text it has not read. Two further points are checkable and worth stating: the distance is quoted against edition B, which is superseded, and Houston's own scheme names TIA/EIA-606-A, an edition older still. A current edition is in recirculation ballot as TIA-606-E. TIA-606-E recirculation ballot notice

Take the distance from your project's specified edition and your own project documents. If a number arrives in a submittal with no document behind it, treat it as the submitter's practice rather than a requirement, and record which it is.

Why the far end is on the label and the near end is not#

Put the two previous sections together and the reason stops looking like editorial preference. The narrowest wrap listed for a horizontal Category 6A cable holds about six characters on a line. An endpoint address holds a room, a rack, a panel and a port. On that label one of those two facts has to give, and the specifications resolve it the same way: spend the print area on the end the reader cannot see.

The near end is not missing from the label. It is the rack the reader is standing in front of, the panel their hand is on, and the port the cable is plugged into. That information is already available at full resolution, in the room, at no cost in print area. Printing it again consumes the only scarce resource on the object in order to restate the one thing the reader cannot get wrong.

New Mexico's horizontal identifier shows what an address looks like when it is designed backward from the label. At the telecommunications room end, a cable running to room 114, first outlet, first jack position carries 114-1A1: seven characters, naming the far end. At the 3.0 mm height above that needs 13.0 mm against the 12.7 mm width of the narrowest wrap listed for that cable, so it reads at about 585 mm rather than 600. It lands about two percent over the available width, which is what an identifier sized for a label looks like.

Compare an address designed forward from the room. DC01/H1/R014/PP01/07 is twenty characters, unambiguous anywhere in the estate, and perfectly correct. On the same narrow label it needs 37.2 mm against 12.7 mm available, and it fits on a line only on the 38.1 mm and 50.8 mm parts listed for that cable. Adding a second endpoint line and a cable identifier, as a viewpoint layout does, produces a longest line of twenty-six characters, which needs 48.4 mm: three point eight times the width of the narrowest label listed for that cable, and within only the widest. Printed on the narrow label anyway, the characters set at about 0.79 mm, which at the same ratio is a reading distance of 158 mm. That is not a label a technician reads in a rack; it is a label a technician photographs.

Five ways out exist and each costs something. Choose a wider wrap from the same table, which buys characters on a line but not lines, and occupies more of the cable: 50.8 mm of it rather than 12.7. Shorten the identifier, which moves scope into the record and is only safe if the reader can reach the record where the work happens. Buy print area by moving to a flag or a tie-on tag, which is a material change the wrap catalogs explicitly do not cover. Use a carrier sleeve, which is the catalog's answer for small simplex fiber. Or accept a shorter reading distance, which is a legitimate answer for a label read at the port rather than from the aisle, and is only a decision if it is written down rather than discovered. Choosing between them is a design decision, and it belongs at the point the identifier scheme is written, not at the printer.

The two ends do not terminate on the same kind of object#

The field's description of a cable label, the same information at both ends with the order reversed, assumes the two ends are the same kind of thing. Often they are not, and the specifications show it plainly.

Houston's patch cord rule names a switch and a port at one end and a patch panel and a port at the other. New Mexico's horizontal rule names a room, an outlet and a jack position at one end, and data, telecommunications room, rack, patch panel and port at the other. In both cases the two ends have different hierarchies because they terminate on different hardware: a wall outlet has no rack unit and a patch panel has no room-side jack position. There is no reversal that turns one into the other, because they are not two orderings of one address.

This has a practical consequence for anyone generating pairs from a worksheet. If the two endpoint fields have different shapes, a template that swaps two values to produce the opposite face is doing the wrong operation, and it will produce a plausible string that names nothing. Generate each face from the field that describes that face's far end, and validate each against the hardware it actually names.

Where the two ends really are the same kind of object, panel port to panel port on a permanent link for instance, a symmetric reciprocal layout is the natural fit and a reversal is a legitimate way to produce it. State which case you are in. A scheme that assumes symmetry and then meets an outlet has a defect that no amount of proof review will surface, because both faces will look correct on the page.

Fixed-end layouts, where the two terminations are named A and Z and both labels carry the same assignments, sidestep the reversal question entirely and pay for it in print area and in ambiguity about which end the reader is at. The site has to define how A and Z are assigned and how a technician recognizes the local end, and neither can be inferred from the alphabetic order of device names.

What a correct label at each end still does not tell you#

A cable identified correctly at both ends establishes which two terminations the cable connects and which record describes the relationship. It does not establish that the link works.

The label describes the cable. It does not describe the pair or fiber assignment inside it, the polarity of an optical assembly, the state of the port at either end, whether the connector is fully seated, or whether the link has ever passed a test. A patch cord can be labeled with the correct switch and port at one end and the correct panel and port at the other, be installed exactly as the record says, and carry no traffic. Identification and verification are separate activities with separate evidence, and a label is evidence of the first only.

The same limit runs the other way. A link that passes a test proves nothing about the label. Test records and identification records are reconciled deliberately, not assumed to agree because both exist; that reconciliation is its own task with its own outcomes.

Nothing on a cable label authorizes work. It does not establish an isolation, permit a disconnection, prove capacity, or satisfy a project requirement. It records an assignment made by a named owner on a dated revision, so that the next person can find the same relationship the same way.

Identify which part of the endpoint relationship is missing#

Begin with the cable, the two terminations, and the record connecting them. A legible cable ID does not necessarily provide a verified destination. A clear port reference does not necessarily identify the cable attached to it. Record which relationship is known and which is missing before choosing the next step.

If the local cable label is absent, establish whether an approved physical identification process can connect the cable to an existing record. Do not issue a second identity simply because the original sticker is hard to see. If the cable ID is visible but returns several records, use the duplicate-identifier process before preparing destination text. If the record is unique but the remote termination lacks evidence, keep that endpoint unresolved.

If both endpoint references are supported but the printed label is wrong, treat the problem as a label-to-record discrepancy. Prepare the corrected proof from the controlled row and account for any obsolete paired labels. If the record itself is stale, obtain the connection owner's correction before treating its text as a production source.

Record the access conditions and the approved identification method with the evidence. This guide organizes identity records and proof review. It does not supply permission or a procedure to unplug, move, manipulate, or test an operational connection.

Decide what the cable identity means#

Write down whether the site's cable identifier names the physical cable, a connection relationship, or another locally defined object. The distinction matters when a cable is moved or replaced. A policy that retains physical-cable identity through a move needs location history; a connection-based scheme may handle that event differently. The record owner must define the meaning before anyone renames the cable to make its endpoints look correct.

Keep the cable ID distinct from endpoint equipment IDs and port references. A label can display all of them, but they answer different questions. The cable ID selects the cable record. The equipment or panel identity selects the terminating object. The port reference selects a termination within that object. Omitting one level can create ambiguity even when the remaining text is perfectly readable.

Check the uniqueness boundary of shortened identifiers. If a cable's full ID is unique only within a site or hall, retain that scope in the label, surrounding controlled reference, or supported lookup context according to policy. The worker should not have to guess which hall an otherwise identical record belongs to.

When a legacy format encodes endpoints into the identifier, preserve the issued value while the owner decides how changes are represented. Do not improvise a second naming rule in the label-printing worksheet.

Build a complete endpoint reference#

Start with the actual hierarchy used by the terminating hardware and the site's records. Include site, hall, rack, panel or device, and port where those levels distinguish the endpoint. Add module, slot, cassette, or face context when the immediate port reference repeats. Copy factory references exactly, including letters, punctuation, and any meaningful leading zeros.

Do not assume that a bare number is a port. It may be a module, channel, row, or local staging sequence. Compare the observed reference with the equipment documentation or controlled endpoint map used by the site. Record the reference's object type so a label preparer does not place a module number in a port field.

Preserve the distinction between equipment identity and its current rack location. If an endpoint device moves, its equipment ID may stay constant under local policy while the location portion changes. The connection record needs enough information to resolve both the terminating object and where a technician can find it.

For cross-hall or cross-site records, write complete scope on both sides during review. A locally abbreviated proof should be derived only after the reviewer confirms how the receiving worker will recover the omitted context. An abbreviation that works at one rack may become ambiguous in a printed handoff used elsewhere.

Choose one label-reading convention#

Two common editorial examples illustrate different semantics. A viewpoint-based layout uses terms such as HERE and THERE or LOCAL and REMOTE. At the opposite end, those descriptions reverse because the reader is standing at the other termination. The cable identity remains the same.

A fixed-end layout uses defined endpoint names such as A and Z. Those endpoint assignments remain fixed on both labels. The label at end Z still lists A as the same defined A endpoint. The site must explain how A and Z are assigned and how the local end is recognized. Neither convention should be inferred merely from the alphabetic order of device names.

Choose the convention required by the local policy and use it consistently throughout a batch. Where policy leaves it open, the print-on area usually decides: a viewpoint layout prints two endpoint lines and a cable identifier, which is three lines on an object that holds about three, so it needs a larger label or a shorter identifier than the far-end-only schemes above. A reviewer should know whether a line changes with viewpoint or names a fixed endpoint. Mixing fixed A/Z records with HERE/THERE proofs without a documented mapping can produce labels that each look plausible while contradicting one another.

An ID-only label is a different choice. It relies on an accessible, controlled record for endpoint detail. Review whether the intended worker can retrieve that record where the cable is serviced, including any access restriction or offline work context. The nearby record must still identify which physical cable its information describes.

Establish evidence for both ends#

Create a distinct evidence reference for each endpoint or a clearly documented observation that establishes both. State the full termination reference and the method permitted by the site. The reviewer needs to see why the observed cable is associated with those terminations, not simply that both ports exist somewhere in the hall.

Separate a planned destination from a confirmed relationship. A design schedule shows intent; it may not establish the installed result after changes. An old test or handoff record can support the investigation, but check its cable identity, scope, revision, and relationship to the current configuration. Record any event that may have changed the endpoints since that evidence was produced.

When the two observations conflict, preserve them as separate claims and assign the discrepancy to the connection owner. Do not overwrite the first observation with the second without recording why the second resolves the relationship. The cause may be a stale schedule, a mistaken cable selection, an incomplete port hierarchy, or an incorrect label.

If an endpoint cannot be confirmed within the approved access or work scope, keep the production destination text held. Record the candidate separately from the verified endpoint field. A proposed destination can guide further authorized investigation while remaining visibly unconfirmed.

Produce the pair from one controlled row#

Prepare both label faces from the same released endpoint record. Review the cable identity once as the shared key, then review the local and remote lines under the chosen convention. For HERE/THERE layouts, end B should show end A's THERE value as HERE and end A's HERE value as THERE. For fixed A/Z layouts, the assigned A and Z values remain unchanged.

Keep the row's revision or connection reference with the proof set, even if that information is not printed on the physical cable label. A pair of labels separated from its governing row is difficult to reconcile after a change. Account for reprints and unused labels so a superseded destination cannot be returned to the active batch unnoticed.

Compare the complete strings before checking visual fit. A well-aligned proof with the wrong module is still wrong. Then inspect the longest actual text in the intended label layout and the approved placement context. A line that truncates only on longer rack or module names may escape a short sample review.

Record which proof version was accepted. If either endpoint changes before application, recheck both faces. The text at the unchanged end may still contain the old remote destination, so replacing only the changed-end sticker can leave the pair inconsistent.

Review reciprocal labels without relying on familiarity#

Give a second reader the controlled row and the paired proofs. Ask them to read the cable ID, identify the local termination for each face, and state the opposite endpoint. Include the full hierarchy in their comparison rather than accepting a match on the final port number alone.

Use a deliberate pair check: shared cable identity, complete end A reference, complete end B reference, convention consistency, and proof revision. Then compare the actual installed result through the authorized work and review process. A proof check confirms proposed text; an installed review confirms what was actually applied and readable.

When the print batch includes similar consecutive cable IDs, review each pair against its own row. A correct total count does not prove correct pairing. A swapped pair can leave every expected identifier present somewhere in the batch while assigning the wrong relationship to individual cables.

Record limitations precisely. If only one installed end could be reviewed, mark the other as pending. Do not let a completed proof review stand in for missing installed evidence.

Scenario: a plausible remote switch name was wrong#

In a separate fictional case, cable CAB-G06-301 has a visible local identity at DC01/H1/R301/PNL-G06-301/P03. A draft schedule lists DC01/H1/R302/SW-G06-301/E17 as the remote endpoint, but the schedule is marked preliminary. The local label preparer is asked to produce both faces to keep the work package moving.

The reviewer records the local observation and holds the unconfirmed remote text. Under the site's separate approved identification process, new evidence establishes the remote endpoint as DC01/H1/R303/SW-G06-302/E17. The same E17 suffix had made the draft look credible even though the terminating device and rack were different.

The connection owner corrects record CON-G06-301 and retains the rejected candidate in exception EX-G06-301. The issued cable ID remains CAB-G06-301 under this fictional policy. The new end-A proof identifies the panel as HERE and the confirmed switch as THERE; end B reverses those descriptions. Both carry the same cable ID.

The print owner removes the preliminary pair from the active pack and records its disposition. After authorized application, the reviewer checks the actual label pair against the revised record and the supporting endpoint evidence. Closure includes the record correction, proof revision, disposition of the old pair, and outcomes for both installed ends. The case is not closed merely because the two new labels agree with each other.

Scenario: fixed endpoints were mistaken for local endpoints#

In another fictional case within DC01 / H1, CAB-G06-302 is documented with fixed endpoint A at DC01/H1/R304/PNL-G06-302/P11 and fixed endpoint Z at DC01/H1/R305/SW-G06-303/E09. Both labels list those same A and Z values correctly. A technician expects LOCAL and REMOTE semantics and reports the label at Z as reversed.

The review finds no disagreement about the physical endpoints. The issue is an unexplained reading convention. The record owner confirms that this work package uses fixed A/Z assignments and that both physical faces should retain them. The resolution is to clarify the approved label legend and work-pack instructions, not silently swap A and Z on one sticker.

Before closing the issue, a second reader uses the clarified legend to identify the local termination from each end. If the site decides to change conventions, that becomes an approved format change affecting both proofs and their generating template. The evidence distinguishes a communication problem from an incorrect connection record.

Handle patch cords, permanent runs, and intermediate connections explicitly#

Describe the object your row represents. A patch cord between a panel and a switch, a permanent run between panels, and a multi-segment path are not automatically one cable identity. Follow the site's model for segment and connection records. Avoid stretching a two-end label across intermediate objects without explaining what relationship the ID actually names.

Where an intermediate panel or coupler is involved, retain the segment boundaries used by the controlled records. A destination beyond that intermediate point may be useful service context, but it should not erase the physical termination of the cable being labeled. The reviewer must be able to distinguish “this cable terminates here” from “this path ultimately reaches there.”

For removable modules or repeated port numbering, retain the hardware hierarchy that disambiguates the installed termination. If module identity and slot location are separately tracked, preserve their relationship instead of replacing one with the other. Refer the detailed panel mapping problem to the patch panel port mapping guide, and a trunk, cassette or MPO breakout to the fiber trunk and breakout map.

When a cable is replaced, consult the identifier policy before carrying its old ID forward. The correct handling depends on whether the ID represents the physical cable or the enduring connection relationship. Record the replacement event and its evidence either way.

Repair brownfield records and prepare new-build handoffs#

In an existing facility, start with a bounded connection discrepancy and preserve the labels as observed. Do not convert an entire row of cables to a new convention before resolving the underlying endpoint evidence. Keep legacy abbreviations in a controlled crosswalk where active records still depend on them.

List any nearby printed schedules or reference cards that repeat the changed destination. Updating the central record and on-cable labels while leaving a current rack reference stale creates another disagreement. Assign each active representation an owner and a correction outcome.

For a new installation, keep design intent, staged label proofs, installed observations, and handoff acceptance distinct. A released design can authorize preparation under the project process, but the installed record should show the reviewed result. Account for changes made after the print batch was issued and before the receiving team accepts it.

Deliver the endpoint register in a form that preserves identifiers as text and retains its revision, scope, and exception references. The receiving team should be able to follow one cable ID from either label to the same complete relationship.

Troubleshoot recurring text and layout failures#

If the same HERE value appears on both ends, inspect the proof-generation mapping and compare the two intended viewpoints. Correct the generating row or template rather than manually editing an isolated sticker without evidence.

If the final port numbers match but the selected equipment is wrong, expand the equipment and module hierarchy. If labels are readable on loose cables but disappear after dressing, use the dense-bundle visibility guide and record the actual service view. If text is clipped or shortened, use the fit and print-quality review with the longest actual identifier, and check it against the print-on area of the label the cable actually takes in the label size and legibility calculator.

If a scan opens the wrong record, compare the encoded value with the human-readable cable ID and the record's lookup key. Keep the scan problem separate from endpoint verification. A successful scan proves neither that the cable is correctly labeled nor that the endpoint relationship is current.

Close recurring defects by recording which source, mapping, or physical condition caused them. The next batch should use the corrected input or reviewed placement, while the affected installed labels still receive their own documented correction.

Worked example#

Fictional labels, worked against real label sizes. The cable is a Category 6A UTP permanent link with a 6.5 mm outside diameter, labeled with a rotating self-laminating wrap listed for that diameter range and read at arm's length. The narrowest, R050X150X1J, gives 12.7 mm along the cable and three lines.

The viewpoint layout this guide uses for illustration does not fit the narrowest label:

END 1 - CAB-0042
HERE  DC01/H1/R014/PP01/07
THERE DC01/H1/R021/PP02/19

Longest line 26 characters. At a 3.0 mm character height that needs 48.4 mm along the cable. The narrowest label is 12.7 mm wide, so the text is 3.8 times too wide, and printed anyway it would set at about 0.79 mm, readable at 158 mm. The widest part listed for the same cable, R200X150X1J, is 50.8 mm wide and holds all three lines.

Three shorter faces, measured against the same 12.7 mm width. Two of them fit, and one of those breaks this guide's own rule:

far-end address only, in the far object's vocabulary
END 1 (at PP01/07)   R021/PP02/19   12 chars, 22.3 mm, 1.8x over
END 2 (at PP02/19)   R014/PP01/07   12 chars, 22.3 mm, 1.8x over

far end shortened to rack and port, panel dropped
END 1                R21/19          6 chars, 11.2 mm, fits
END 2                R14/07          6 chars, 11.2 mm, fits

cable identity only, both endpoints held in the record
END 1                CAB-42          6 chars, 11.2 mm, fits
END 2                CAB-42          6 chars, 11.2 mm, fits

Reading down the block is the whole argument for this label. On the narrowest wrap the far-end address is still 1.8 times over, six characters is the budget, and the only way to reach it with an endpoint is to drop the panel, which this guide's own rule forbids wherever port numbers repeat across panels, and they do. So on the narrow wrap, at this reading distance, no endpoint address fits, and the honest choices are the cable identity with both endpoints held in connection record DEMO-CON-0042, or a wider wrap: R100X150X1J, at 25.4 mm, holds the far-end address on a line, and R150X150X1J, at 38.1 mm, holds the full room-and-port address.

That is a conclusion about one label, one cable and one reading distance, not about cable labels in general. Change any of them and the budget changes: a wider wrap buys characters, a fatter cable buys lines, and a reader who will be 300 mm away rather than 600 has half the character height to buy characters with. What does not change is that the budget exists and is set by the part, so it belongs in the scheme rather than in a surprise at the printer. The remaining way out is to stop using a wrap: a flag, a tie-on tag or a carrier sleeve buys print area at the cost of a material change the wrap catalogs do not cover.

All identifiers here are fictional. Labels do not establish service state or permission to interrupt the connection.

Common mistakes#

  • Printing the expected remote endpoint as though it was observed.
  • Copying the same HERE text onto both ends.
  • Dropping the panel or device context when port numbers repeat.
  • Approving label text on a screen and never against the print-on area of the label the cable will actually take.
  • Swapping two endpoint values to make the opposite face when the two ends terminate on different kinds of hardware.
  • Quoting a placement distance as a requirement without the document and edition it came from.

Verification#

Worksheet: Two-end cable label schedule#

Fields define one row; sample values are fictional. Leave working-sheet dates blank until their recorded event occurs. Sample status: Example only.

Field Definition Filled example
Cable ID Identity shared by the paired labels. CAB-0042
Local endpoint First complete termination reference. DC01/H1/R014/PP01/07
Remote endpoint Second complete termination reference. DC01/H1/R021/PP02/19
Connection reference Controlled record for this relationship. DEMO-CON-0042
End A text First-end label proof. CAB-0042; HERE DC01/H1/R014/PP01/07; THERE DC01/H1/R021/PP02/19
End B text Second-end label proof. CAB-0042; HERE DC01/H1/R021/PP02/19; THERE DC01/H1/R014/PP01/07
Exception Unresolved discrepancy or stated outcome. None in fictional example
Owner Role responsible for the connection record. Network records lead
Evidence References confirming both terminations. DEMO-ENDS-0042
Verifier Person comparing both endpoint references. Example reviewer
Verification date Date the endpoint comparison was made. 2026-09-12
Status Identification review state. Example only

Frequently asked questions#

Can the cable ID alone be enough?#

Your policy may use an ID that resolves to endpoint records. Confirm that technicians can access the required record where they work.

What if the remote end cannot be confirmed?#

Keep the destination unresolved and assign the investigation. A cleanly printed assumption is still an unverified relationship.

Which cable-labeling format is best?#

Choose a format that preserves the site's identity meaning, distinguishes both endpoints, and can be interpreted at the service location. Compare HERE/THERE, fixed A/Z, and ID-only examples against actual work tasks. There is no format in this guide that overrides the project's adopted requirements.

Can we label only the end that changed?#

Review both label texts and the connection record. Under a local/remote layout, the unchanged physical end may still display the former remote destination. Reissue and verify whichever faces became stale under the approved convention, accounting for superseded copies.

What should an unresolved destination label say?#

Follow the site's approved exception and temporary-identification process. Keep the verified cable identity available and avoid presenting a guessed destination as confirmed. Record the candidate, missing evidence, owner, and release condition in the controlled exception record.

How many characters fit on a cable label?#

On the narrowest self-laminating wrap a manufacturer lists for a Category 5e, 6 or 6A UTP cable, the print-on area is 12.7 mm along the cable and 12.7 mm around it. Read at arm's length, 600 mm at a 1:200 ratio, that is a 3.0 mm character height, about six characters on a line and three lines. The width along the cable decides the characters and the cable's diameter decides the lines: wider parts listed for the same cable hold 13, 20 and 27 characters on a line, and the smallest part in the range, listed for a 28 AWG patch cord, still holds six characters but only one line. Those counts are this library's arithmetic at a stated reading distance, not a manufacturer's claim, and they are a starting point for a printed proof rather than a substitute for one.

Should the label show both endpoints or only the far one?#

It depends on the cable, and the two published specifications read for this guide show why. Six of their eight rules print the far end only: the patch panel end of a patch cord carries the switch and port number and the switch end carries the patch panel and port number, and the horizontal scheme in the other specification does the same thing in two vocabularies. The exceptions are riser copper and riser fiber, which carry from and to on both ends — and those are the fattest cables in the set, whose labels have room for more lines. The near end is the rack the reader is standing in front of, so printing it spends scarce print area restating what cannot be got wrong. A viewpoint layout that prints both is a legitimate local choice, but check it against the label before adopting it.

Does TIA-606 require a label within twelve inches of the termination?#

This guide does not restate clause text it has not read. The publicly readable scope of ANSI/TIA-606-D, published October 2021, establishes that it is the Administration Standard for Telecommunications Infrastructure, defines four administration classes, and covers identifiers, labels, records, linkages and reporting, with patch cord identification treated in an annex; it does not establish a placement distance. The twelve-inch figure circulating in the field is usually attributed to edition B, which is superseded. The two owner specifications read here use 4, 6, 12, and 12-to-36 inches for different cables and ends. Take the distance from your project's specified edition and its documents.

Why does the same information reversed not work at both ends?#

Because the two ends often do not terminate on the same kind of object. A wall outlet has a room, an outlet number and a jack position; a patch panel has a rack, a panel and a port. Those are different hierarchies, not two orderings of one address, so no swap turns one into the other. Where both ends really are the same kind of object, a symmetric reciprocal layout fits and a reversal is a reasonable way to generate it. State which case a scheme assumes, because a scheme that assumes symmetry and then meets an outlet produces faces that look correct on the page and name nothing.

The correct text does not fit the cable. What are the options?#

Five, and each costs something. Choose a wider wrap listed for the same cable, which buys characters on a line but not lines, and occupies more of the cable. Shorten the identifier and hold the missing scope in the record, which is safe only if the reader can reach that record where the work happens. Move to a flag or tie-on format, which buys print area at the cost of a material change the wrap catalogs explicitly do not cover. Use a carrier sleeve, which is the manufacturer's answer for small simplex fiber cable. Or accept a shorter reading distance and record that decision, rather than letting it happen by default at the printer.

Why is the legend only readable from one side?#

On a 6.5 mm cable the circumference is about 20.4 mm, and the print-on area of the wraps listed for it is 12.7 mm around the cable, which is roughly 0.62 of a turn. The legend faces one way and a reader approaching from the other side sees the clear laminating tail. Rotating labels exist for that case: once the adhesive anchor is detached the label turns and slides on the cable, so the legend can face the reader, and the catalog read for this guide describes them as ideal for high-density or space-constrained applications. Check the coverage before the batch, not after the bundle is dressed.

Can a cable be too thin to wrap?#

The catalog read for this guide lists self-laminating polyester wraps from a 2.0 mm cable and rotating wraps from 3.1 mm, and at those sizes the print-on area around the cable holds one line. For 2 mm and 3 mm simplex fiber its answer is a carrier: a flexible PVC sleeve, 1 inch long, that provides a larger labeling surface, used with a 25.4 mm wide label and located on a straight section of cable at least 2 inches from the fiber boot.

No. A label establishes which two terminations the cable connects and which record describes that relationship. It says nothing about the pair or fiber assignment inside the cable, the polarity of an optical assembly, the state of either port, whether the connector is seated, or whether the link has ever passed a test. A patch cord can be labeled correctly at both ends, installed exactly as the record says, and carry no traffic. Reconcile identification records and test records deliberately; do not treat the existence of both as agreement between them.

More worked label examples

Two additional ways to apply this guide. Keep the exact identifiers and relationships consistent with your own approved records.

GUIDE 06 / EXAMPLE 1

Print reciprocal local and remote cable faces

Each end carries the same cable ID, but its local and remote endpoint lines reverse with the viewing position.

SCOPE: DC01 / H1; connection CON-G06-101
END A LABEL FACE                END B LABEL FACE
+---------------------------+  +---------------------------+
| CBL-G06-101               |  | CBL-G06-101               |
| LOCAL PNL-G06-101 / P03   |  | LOCAL SW-G06-101 / E17    |
| TO    SW-G06-101 / E17    |  | TO    PNL-G06-101 / P03   |
+---------------------------+  +---------------------------+
PNL-G06-101 / P03 ===== CBL-G06-101 ===== SW-G06-101 / E17

ENDPOINT REGISTER
PNL-G06-101 -> R101 / U40 / front
SW-G06-101  -> R102 / U32 / front
End A observation: EV-G06-101-A
End B observation: EV-G06-101-B
FICTIONAL EXAMPLE / NOT TO SCALE
  • Use the exact port identifiers printed on the actual panel and device, including any slot or module context. Expand abbreviated examples such as P03 or E17 when they are not unique within the object.
  • If your policy uses fixed A/Z endpoints rather than local/remote text, keep A/Z fixed on both labels. Do not mix viewpoint-based and fixed-end conventions in one batch.

GUIDE 06 / EXAMPLE 2

Leave an unverified remote endpoint visibly unresolved

An incomplete connection is held for review instead of receiving a guessed destination label.

SCOPE: DC01 / H1; exception EX-G06-201
OBSERVED LOCAL END: PNL-G06-201 / P11
CURRENT ID FACE: [CBL-G06-201]

RECORD BEFORE
CBL-G06-201 | LOCAL PNL-G06-201/P11 | REMOTE UNKNOWN
Candidate note: SW-G06-201/E09; not verified
Production destination labels: HOLD

AFTER RECORDED ENDPOINT VERIFICATION, EXAMPLE FACES
+---------------------------+  +---------------------------+
| CBL-G06-201               |  | CBL-G06-201               |
| LOCAL PNL-G06-201 / P11   |  | LOCAL SW-G06-202 / E09    |
| TO    SW-G06-202 / E09    |  | TO    PNL-G06-201 / P11   |
+---------------------------+  +---------------------------+
Evidence EV-G06-201 resolves candidate SW-G06-201 as wrong
FICTIONAL EXAMPLE / NOT TO SCALE
  • Select an endpoint-verification method permitted for the installed service and access conditions. This example gives no instruction to disconnect or disturb a live connection.
  • Preserve the rejected candidate and the evidence that resolved it in the exception record. Release the label pair only when the complete endpoint references have been checked.

Sources and applicability

Planning guides and companion documents

These narrated examples add visual context to the field guide. Each watch page includes chapters, a transcript, references, and the limits of the example.

Browse data center videos.
